Instruments combinat-.single components for BMW 5 Series E12 520 (1981)

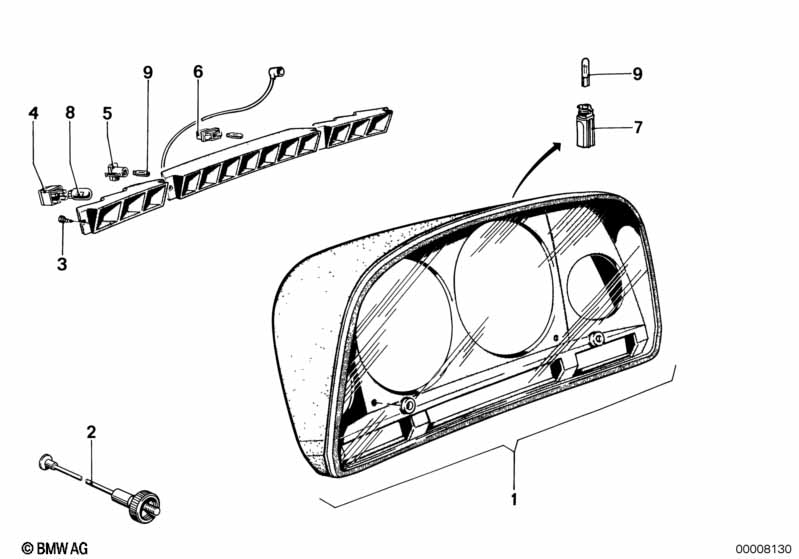

This Instruments combinat-.single components technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Dashboard support | 1 | 08/1978 | 62111365436 | $107.69 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Revolution counter |
=Yes |
|||||||||
| 01 | Dashboard support | 1 | 08/1978 | 62111365435 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bowden cable | 1 | 62111366740 | $8.32 | Shop at ECS Tuning | |||||
| 03 | Fillister head self-tapping screw | ST2,9X13 | 6 | 07119906706 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 03 | Hex head screw | B3,5X19 | 8 | 62111354856 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bulb socket | 2 | 62111354916 | $2.16 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bulb socket | 6 | 62111354917 | $10.82 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bulb socket | 2 | 61131355558 | $1.23 | Shop at ECS Tuning | |||||
| 08 | Bulb | W3W | 2 | 07119905358 | $1.96 | Shop at ECS Tuning | ||||
| 09 | Bulb | 12V 1,2W | X | 63217167000 | $3.00 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
