Instruments combinat-.single components for BMW 5 Series E34 525tds (1996)

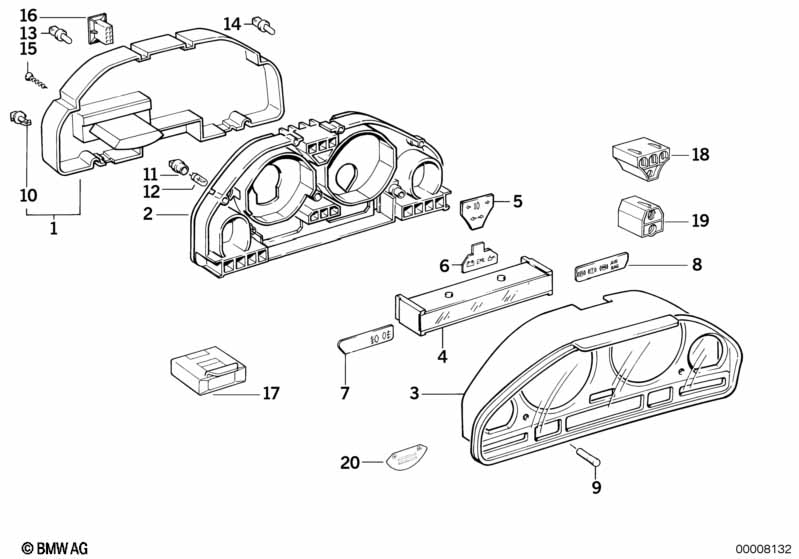

This Instruments combinat-.single components technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Conductor plate with cover plate | 1 | 09/1990 | 62118361120 | $574.42 | ENDED | Shop at ECS Tuning | |||
| 02 | Dashboard support | 1 | 09/1990 | 62111391918 | $121.64 | Shop at ECS Tuning | ||||
| 03 | Frame front | 1 | 09/1990 | 62111391909 | $138.38 | ENDED | Shop at ECS Tuning | |||
| 05 | Control symbol | 1 | 09/1990 | 62111391916 | $6.25 | ENDED | Shop at ECS Tuning | |||
| 06 | Control symbol | 1 | 09/1990 | 62111391917 | Shop at ECS Tuning | |||||
| 07 | Control symbol light left | 1 | 09/1990 | 62111391914 | $7.25 | ENDED | Shop at ECS Tuning | |||
| 08 | Control symbol light right | 1 | 09/1990 | 62111391915 | $7.25 | ENDED | Shop at ECS Tuning | |||
| 09 | Button | 2 | 09/1990 | 62111378568 | $8.58 | Shop at ECS Tuning | ||||
| 10 | Rotary knob | 2 | 09/1990 | 63211376879 | $0.65 | ENDED | Shop at ECS Tuning | |||
| 11 | Bulb socket | 3 | 09/1990 | 62111376716 | $3.94 | Shop at ECS Tuning | ||||
| 12 | Bulb | W3W | 3 | 09/1990 | 07119905358 | $1.96 | Shop at ECS Tuning | |||
| 13 | Bulb | 12V 1,2W | X | 09/1990 | 62131383311 | $3.00 | Shop at ECS Tuning | |||
| 14 | Bulb | 12V 1,5W | 2 | 09/1990 | 62111391260 | $3.00 | ENDED | Shop at ECS Tuning | ||
| 16 | Covering cap | 1 | 09/1991 | 62111391898 | Shop at ECS Tuning | |||||
| ONLY WITH INDICATION OF 48-DIGIT CODE | ||||||||||
| 16 | Coding plug (code) | 1 | 09/1991 | 62119067683 | Shop at ECS Tuning | |||||
| For vehicles with 5-gear transmission |
=Yes |
|||||||||
| 17 | Gear position indicator | 1 | 62148375004 | $137.06 | Shop at ECS Tuning | |||||
| 18 | Light duct | 1 | 09/1990 | 62118351105 | $17.30 | ENDED | Shop at ECS Tuning | |||
| 19 | Light duct | 1 | 09/1990 | 62118351106 | ENDED | Shop at ECS Tuning | ||||
