Speedo cable for BMW 5 Series E12 528 (1977)

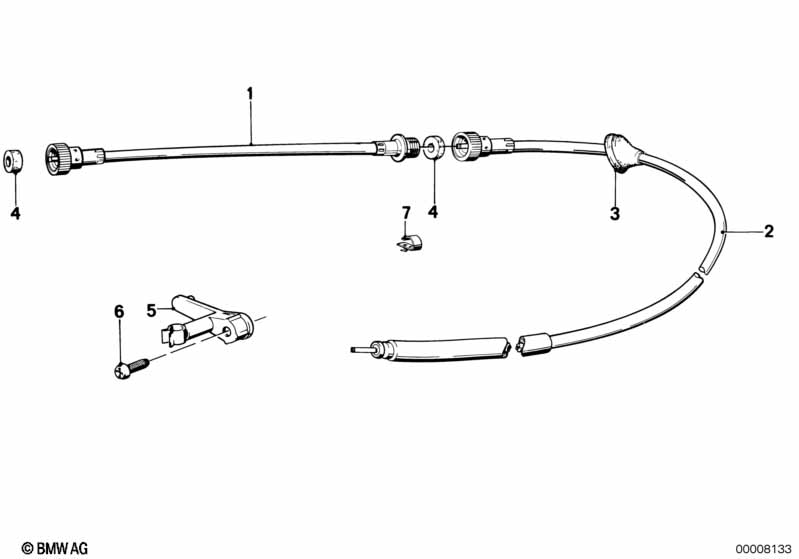

This Speedo cable technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Speedo cable upper part | 1 | 62121357767 | Shop at ECS Tuning | ||||||
| 02 | Speedo cable lower part | 1 | 62121368074 | $43.80 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with 5-gear transmission |
=Yes |
|||||||||
| 02 | Speedo cable lower part | 1 | 62121368145 | $29.85 | Shop at ECS Tuning | |||||
| 03 | Rubber grommet | 1 | 62121359329 | ENDED | Shop at ECS Tuning | |||||
| 04 | Feltring | 2 | 62121354210 | $2.00 | Shop at ECS Tuning | |||||
| 07 | Clamp | 2 | 62121358247 | $0.27 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 528 Speedo cable?
- This technical diagram illustrates the Speedo cable within the Instruments, Measuring systems group for the 5 Series E12 528 produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Speedo cable upper part (Part #62121357767).
- Which models use the hardware listed in this Speedo cable?
- The hardware and components featured in the Speedo cable are specific to the 5 Series E12 528 produced during 1977. These technical specifications ensure that parts like the Speedo cable upper part (62121357767) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Speedo cable assembly?
- Each item in the Speedo cable corresponds to the numbered list below the illustration. For the 5 Series E12 528, you can identify the Speedo cable upper part by locating its position on the schematic, which then links to the official BMW part number 62121357767 for the Instruments, Measuring systems section.
