rev. counter cable/serv. interval switch for BMW 3 Series E21 320i (1979)

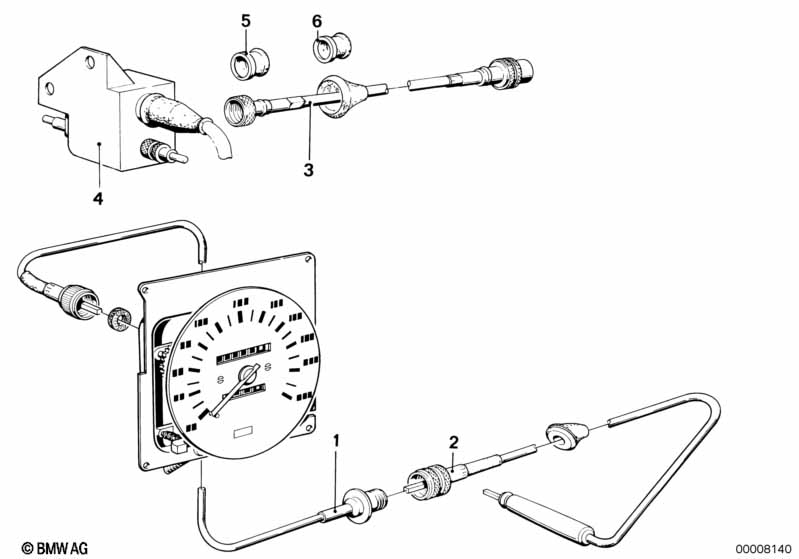

This rev. counter cable/serv. interval switch technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Speedo cable upper part | 1 | 62121369915 | $113.50 | Shop at ECS Tuning | |||||
| 03 | Speedo cable intermediate part | 1 | 62121360284 | $21.32 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with California version |
=Yes |
|||||||||
| 04 | Service interval switch | 1 | 09/1979 | 61311359330 | $112.72 | ENDED | Shop at ECS Tuning | |||
| For vehicles with California version |
=No |
|||||||||
| 04 | Service interval switch | 1 | 09/1979 | 61311360837 | $113.70 | Shop at ECS Tuning | ||||
| 05 | Protection cap | EGR | 1 | 61311364939 | $1.59 | ENDED | Shop at ECS Tuning | |||
| 06 | Protection cap | REAC | 1 | 61311364938 | $0.86 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
