Speedo cable attaching parts for BMW 3 Series E21 320i (1979)

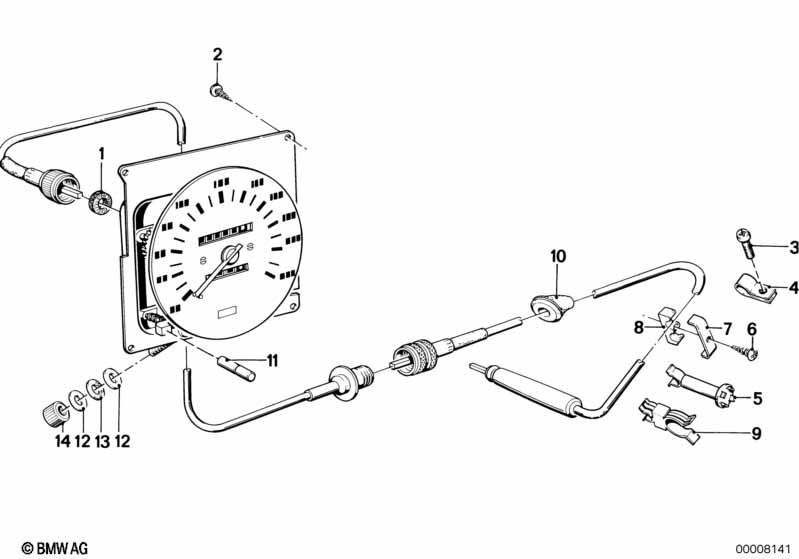

This Speedo cable attaching parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Feltring | 2 | 62121354210 | $2.00 | Shop at ECS Tuning | |||||
| 02 | Fillister head self-tapping screw | ST3,5X16 | 8 | 07119905240 | Shop at ECS Tuning | |||||
| 03 | Self tapping screw | 1 | 34321119239 | $0.27 | Shop at ECS Tuning | |||||
| 04 | Clamp | 1 | 62121365810 | $1.64 | ENDED | Shop at ECS Tuning | ||||
| 05 | Holder | 1 | 62121365911 | $1.23 | ENDED | Shop at ECS Tuning | ||||
| 06 | Fillister head self-tapping screw | ST3,9X16 | 2 | 07119906745 | $0.29 | ENDED | Shop at ECS Tuning | |||
| 07 | Holder | 1 | 16121155060 | $1.08 | Shop at ECS Tuning | |||||
| 08 | Clamp | 2 | 34321107929 | $0.57 | ENDED | Shop at ECS Tuning | ||||
| 09 | Holder | 1 | 62121364482 | $1.17 | Shop at ECS Tuning | |||||
| 10 | Rubber grommet | 1 | 62121361411 | ENDED | Shop at ECS Tuning | |||||
| 11 | Push-button | 1 | 62121363213 | $2.16 | Shop at ECS Tuning | |||||
| 12 | Washer | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 13 | Rubber washer | 1 | 51185480151 | $0.57 | Shop at ECS Tuning | |||||
| 14 | Knurled head nut | M5 | 1 | 62148480019 | $3.68 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
