On-board computer for BMW 7 Series E23 728i (1982)

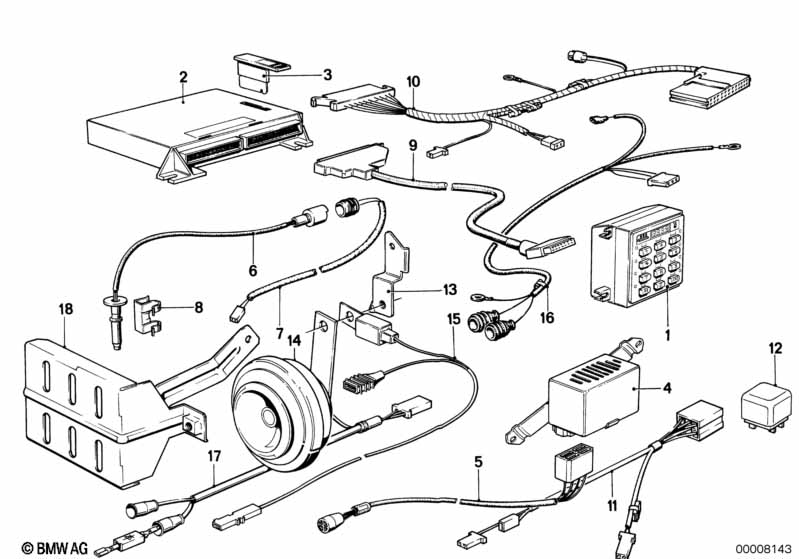

This On-board computer technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Input unit on-board computer | (DEUTSCH) | 1 | 09/1984 | 65811367660 | $1149.48 | Shop at ECS Tuning | |||
| 01 | Input unit on-board computer | (ENGLISH) | 1 | 09/1984 | 65811368311 | $824.03 | ENDED | Shop at ECS Tuning | ||
| 02 | Control unit | 1 | 09/1981 | 09/1984 | 65811372823 | $1218.41 | ENDED | Shop at ECS Tuning | ||
| 03 | Coding plug | 1 | 04/1981 | 09/1984 | 65811370291 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO TIRES 205/70 | ||||||||||
| 03 | Coding plug | 1 | 04/1981 | 09/1984 | 65811370292 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Saudi Arabia version |
=Yes |
|||||||||
| 03 | Coding plug | 1 | 09/1984 | 65811374522 | ENDED | Shop at ECS Tuning | ||||
| 03 | Coding plug | 1 | 09/1984 | 65811374523 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO TIRES 205/70 | ||||||||||
| 04 | Gong | 1 | 09/1984 | 65811367662 | $84.74 | Shop at ECS Tuning | ||||
| 05 | Wiring gong | 1 | 09/1984 | 61121368178 | ENDED | Shop at ECS Tuning | ||||
| 06 | Outside temperature sensor | 1 | 09/1984 | 65811385337 | $80.63 | Shop at ECS Tuning | ||||
| 07 | Wiring sensor outdoor temperatur | 1 | 09/1984 | 61121371765 | $20.20 | ENDED | Shop at ECS Tuning | |||
| 08 | Clamp | 1 | 09/1984 | 63171367998 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 09 | Wiring control unit-input unit | 1 | 09/1984 | 65811370458 | ENDED | Shop at ECS Tuning | ||||
| 10 | Wiring car computer | 1 | 09/1982 | 09/1984 | 61121375424 | ENDED | Shop at ECS Tuning | |||
| 11 | Wiring set | 1 | 09/1982 | 09/1984 | 61121375428 | ENDED | Shop at ECS Tuning | |||
| 12 | Relay, change-over contact,signal violet | 1 | 09/1982 | 09/1984 | 61361388911 | $13.96 | Shop at ECS Tuning | |||
| 13 | Holder | 1 | 09/1983 | 65811367565 | $3.46 | ENDED | Shop at ECS Tuning | |||
| 14 | Horn | KLAXON 335HZ | 1 | 09/1984 | 61331367358 | $42.14 | ENDED | Shop at ECS Tuning | ||
| 15 | Suppression capacitor | 1 | 09/1981 | 09/1983 | 65811370418 | $14.13 | Shop at ECS Tuning | |||
| 16 | Wiring theft alarm/bordcomputer | 1 | 09/1981 | 09/1983 | 61121371147 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
