indicator array/printed-circuit board for BMW 5 Series E12 528i (1979)

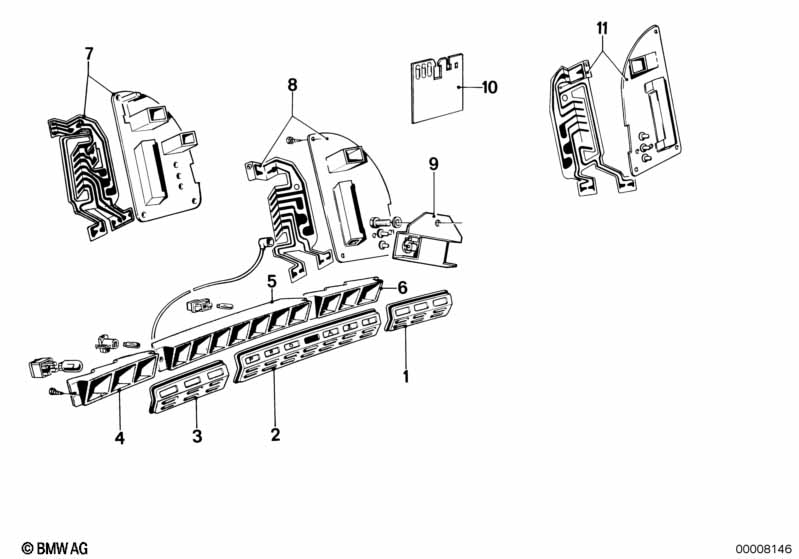

This indicator array/printed-circuit board technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Control light panel | 1 | 62111363814 | $13.95 | ENDED | Shop at ECS Tuning | ||||
| 02 | Cover | 1 | 62111354901 | $5.52 | ENDED | Shop at ECS Tuning | ||||
| 03 | Control light panel | 1 | 62111363813 | ENDED | Shop at ECS Tuning | |||||
| 04 | Bulb socket | 1 | 62111359168 | ENDED | Shop at ECS Tuning | |||||
| 06 | Bulb socket | 1 | 62111354922 | $4.35 | ENDED | Shop at ECS Tuning | ||||
| 07 | Left dashport support | 1 | 62111365437 | $21.83 | ENDED | Shop at ECS Tuning | ||||
| 10 | Printed circuit board | 1 | 62111365441 | $37.91 | Shop at ECS Tuning | |||||
| 11 | Right dashport support | 1 | 62111354910 | $17.96 | ENDED | Shop at ECS Tuning |
