Speedo cable for BMW 5 Series E12 528i (1981)

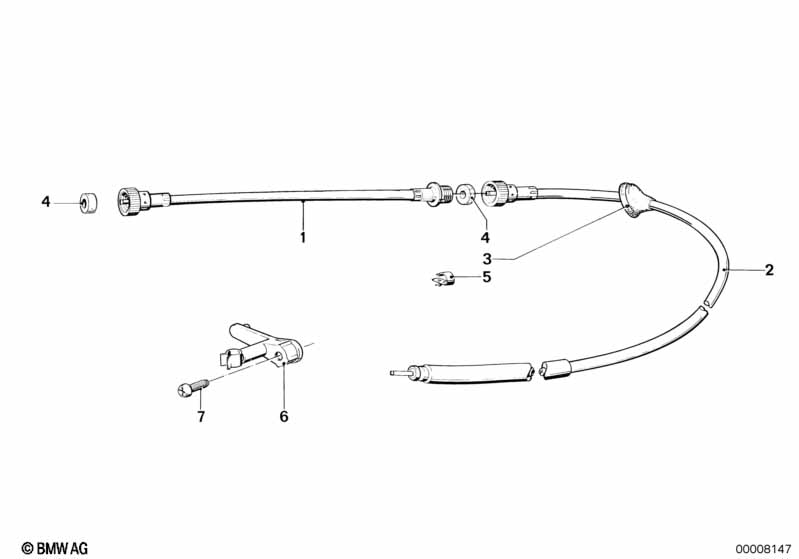

This Speedo cable technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Speedo cable upper part | 1 | 62121357768 | $35.46 | ENDED | Shop at ECS Tuning | ||||
| 01 | Speedo cable intermediate part | 1 | 62121359407 | $34.15 | ENDED | Shop at ECS Tuning | ||||
| 02 | Speedo cable lower part | L=690MM | 1 | 62121359397 | $43.20 | ENDED | Shop at ECS Tuning | |||
| 03 | Rubber grommet | 1 | 62121359329 | ENDED | Shop at ECS Tuning | |||||
| 04 | Feltring | 2 | 62121354210 | $2.00 | Shop at ECS Tuning | |||||
| 05 | Clamp | X | 62121358247 | $0.27 | ENDED | Shop at ECS Tuning | ||||
| 06 | Holder | 1 | 62121367867 | $2.95 | Shop at ECS Tuning | |||||
| 07 | Self tapping screw | 1 | 34321119239 | $0.27 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
