Instruments for BMW 5 Series E28 524td (1984)

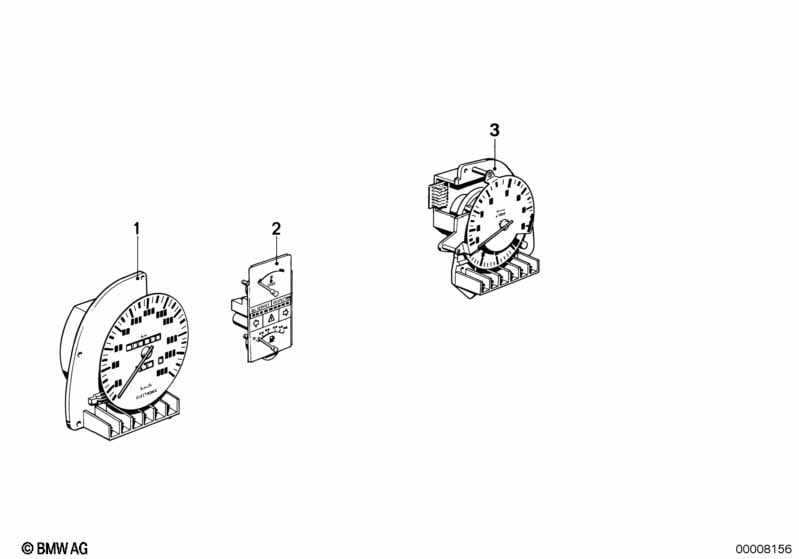

This Instruments technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 524td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Speedometer | MPH-KM/H | 1 | 62121377678 | $529.62 | Shop at ECS Tuning | ||||
| For vehicles with National version Canada |
L838A=Yes |
|||||||||
| 01 | Speedometer | KM/H | 1 | 62121380432 | Shop at ECS Tuning | |||||
| 02 | Instrument panel | 1 | 01/1986 | 62131376646 | $181.48 | ENDED | Shop at ECS Tuning | |||
| 03 | Revolution counter | 1 | 01/1986 | 62131376625 | $288.75 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
