Instruments for BMW 3 Series E30 325e (1986)

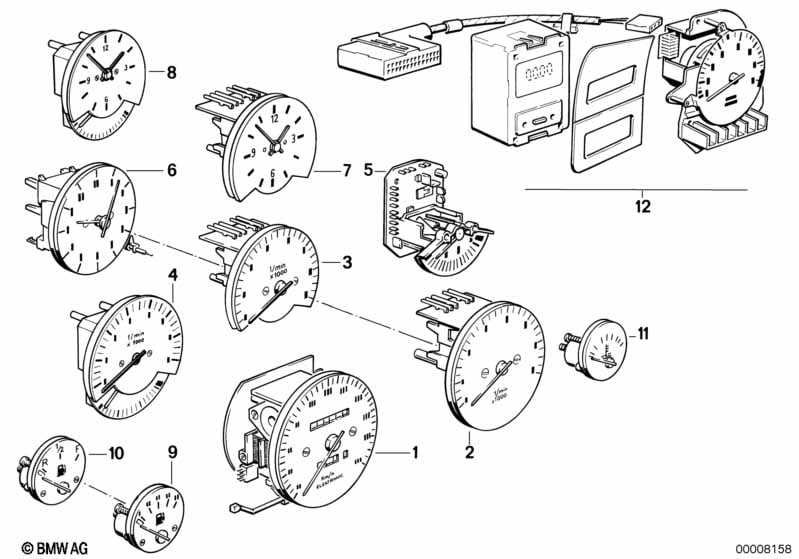

This Instruments technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Speedometer | KM/H | 1 | 09/1985 | 62121381706 | ENDED | Shop at ECS Tuning | |||
| 01 | Speedometer | KM/H | 1 | 09/1985 | 62121377343 | $538.15 | ENDED | Shop at ECS Tuning | ||
| 04 | Revolution counter w.fuel economy contr. | 1 | 01/1986 | 62131377359 | ENDED | Shop at ECS Tuning | ||||
| 09 | Petrol gauge | 55L | 1 | 09/1983 | 09/1987 | 62131374824 | $88.27 | ENDED | Shop at ECS Tuning | |
| 11 | Temperature gauge | 1 | 62131374816 | $163.77 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
