Instruments combinat-.single components for BMW 3 Series E30 318is (1991)

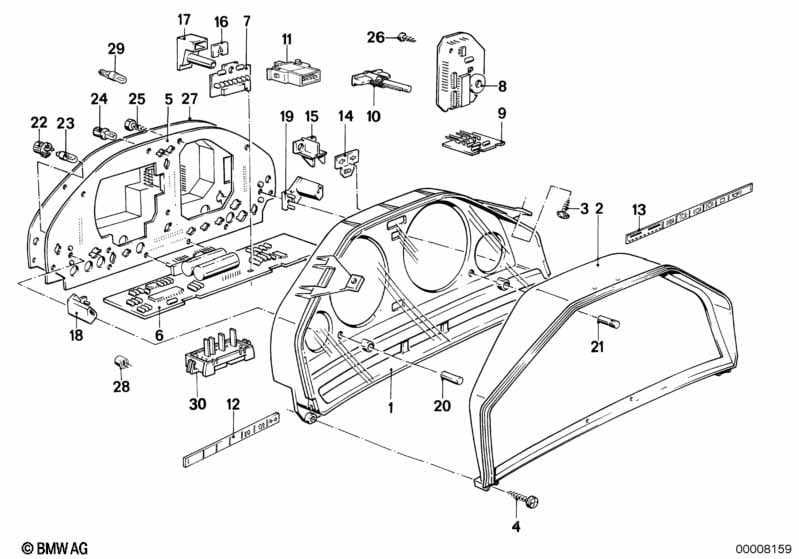

This Instruments combinat-.single components technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Dashboard support | 1 | 01/1986 | 62111377340 | $247.72 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover | 1 | 62111368872 | $30.02 | Shop at ECS Tuning | |||||
| 03 | Recessed oval head sheet-metal screw | ST2,9X16 | 4 | 07119902423 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Recessed oval head sheet-metal screw | ST2,9X9,5 | 2 | 07119902399 | $0.98 | ENDED | Shop at ECS Tuning | |||
| 04 | Fillister head self-tapping screw | B2,9X23 | 2 | 62111372267 | $0.11 | ENDED | Shop at ECS Tuning | |||
| 05 | Printed circuit board | 1 | 09/1987 | 62111385581 | $271.86 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Instrument cluster |
=Yes |
|||||||||
| 06 | Printed circuit board | 1 | 01/1986 | 62119070793 | $338.88 | ENDED | Shop at ECS Tuning | |||
| 07 | Printed circuit board | 1 | 01/1986 | 62111377669 | $98.97 | ENDED | Shop at ECS Tuning | |||
| 11 | Coding plug | 1 | 62111394321 | $46.71 | ENDED | Shop at ECS Tuning | ||||
| 12 | Control symbol light left | 1 | 09/1987 | 62111381497 | $7.25 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Canada |
L838A=Yes |
|||||||||
| 13 | Control symbol light right | 1 | 09/1987 | 62111381879 | $7.25 | ENDED | Shop at ECS Tuning | |||
| 13 | Control symbol light right | 1 | 06/1989 | 62111377320 | $5.47 | ENDED | Shop at ECS Tuning | |||
| 14 | Control symbol | 1 | 62111372253 | $5.47 | ENDED | Shop at ECS Tuning | ||||
| 15 | Optical conductor | 1 | 62111372247 | $1.70 | Shop at ECS Tuning | |||||
| 16 | Control symbol | 1 | 62111377674 | $5.47 | Shop at ECS Tuning | |||||
| 17 | Optical conductor | 1 | 01/1986 | 62111377367 | $1.75 | Shop at ECS Tuning | ||||
| 20 | Push-button | 1 | 62121363213 | $2.16 | Shop at ECS Tuning | |||||
| 22 | Bulb socket | 3 | 62111376716 | $3.94 | Shop at ECS Tuning | |||||
| 23 | Bulb | W3W | 3 | 07119905358 | $1.96 | Shop at ECS Tuning | ||||
| 24 | Bulb | 1,2W | X | 62111368299 | $3.00 | Shop at ECS Tuning | ||||
| 24 | Bulb | 2W | 2 | 62111375774 | $3.00 | Shop at ECS Tuning | ||||
| 25 | Fillister head self-tapping screw | ST3,5X16 | 9 | 07119905240 | Shop at ECS Tuning | |||||
| 26 | Fillister head self-tapping screw | ST2,9X13 | 8 | 07119906706 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 27 | Cover | 1 | 09/1987 | 62111385582 | $27.84 | ENDED | Shop at ECS Tuning | |||
| 28 | Fuse | 1 | 62149056472 | $3.39 | ENDED | Shop at ECS Tuning | ||||
| 30 | Plug housing | 1 | 62111372218 | $7.86 | ENDED | Shop at ECS Tuning | ||||
