Instruments combinat-.single components for BMW 3 Series E21 316 (1983)

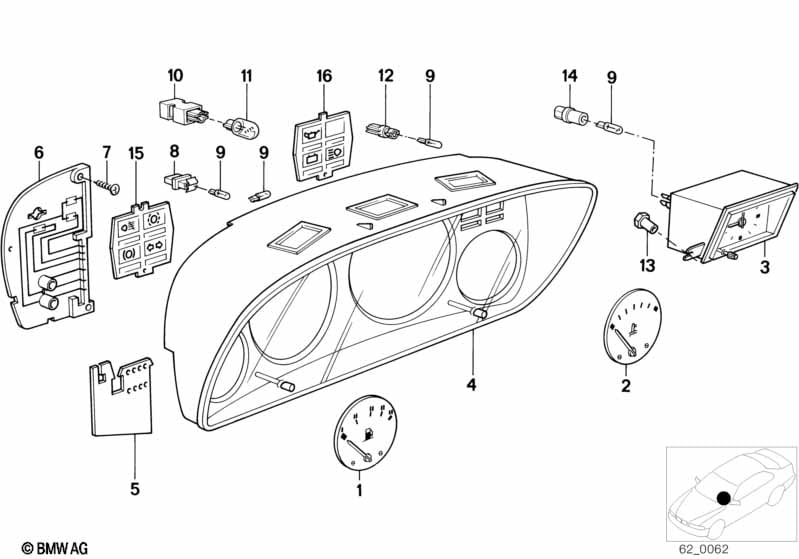

This Instruments combinat-.single components technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 316. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Petrol gauge | 1 | 08/1978 | 62131366785 | $47.46 | ENDED | Shop at ECS Tuning | |||
| 02 | Temperature gauge | 1 | 62131363714 | Shop at ECS Tuning | ||||||
| 04 | Dashboard support | 1 | 62111364123 | $161.82 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Revolution counter |
=Yes |
|||||||||
| 04 | Dashboard support | 1 | 62111363678 | $161.82 | ENDED | Shop at ECS Tuning | ||||
| 05 | Printed circuit board | 1 | 08/1978 | 62111366787 | $18.97 | Shop at ECS Tuning | ||||
| 06 | Right dashport support | 1 | 62111359439 | $16.55 | ENDED | Shop at ECS Tuning | ||||
| 06 | Left dashport support | 1 | 08/1979 | 62111367248 | $21.09 | ENDED | Shop at ECS Tuning | |||
| 07 | Fillister head self-tapping screw | ST3,5X16 | 8 | 07119905240 | Shop at ECS Tuning | |||||
| 08 | Bulb socket | 5 | 62111354917 | $10.82 | ENDED | Shop at ECS Tuning | ||||
| 09 | Bulb | 12V 1,2W | X | 63217167000 | $3.00 | Shop at ECS Tuning | ||||
| 10 | Bulb socket | 2 | 62111354916 | $2.16 | ENDED | Shop at ECS Tuning | ||||
| 11 | Bulb | W3W | 2 | 07119905358 | $1.96 | Shop at ECS Tuning | ||||
| 12 | Bulb socket | 3 | 61131355558 | $1.23 | Shop at ECS Tuning | |||||
| 13 | Nut | 2 | 62131356825 | $0.46 | Shop at ECS Tuning | |||||
| 14 | Bulb socket | 2 | 62131365240 | $1.64 | ENDED | Shop at ECS Tuning | ||||
| 15 | Control symbol light left | 1 | 08/1979 | 62111367253 | ENDED | Shop at ECS Tuning | ||||
| 16 | Control symbol light right | 1 | 62111363683 | $3.27 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
