Instruments for BMW 3 Series E30 324d (1990)

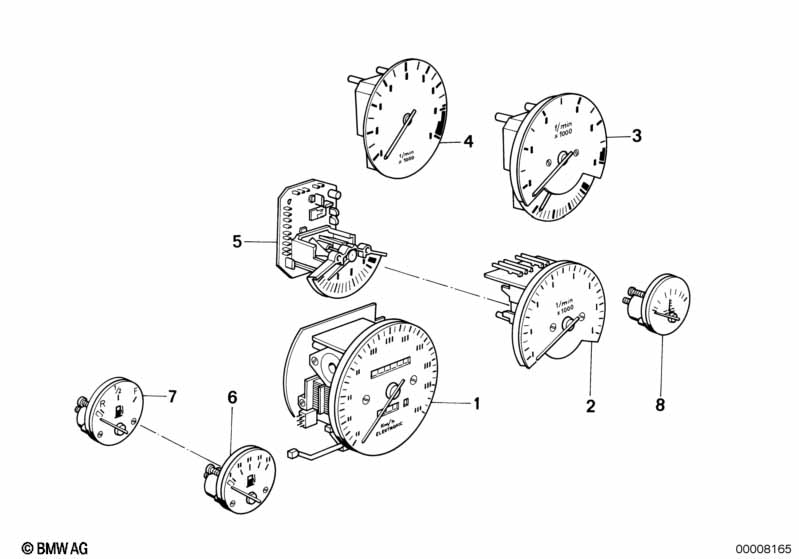

This Instruments technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 324d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Speedometer | KM/H | 1 | 09/1987 | 62121385363 | Shop at ECS Tuning | ||||
| 04 | Revolution counter w.fuel economy contr. | L/100KM | 1 | 01/1989 | 62131385362 | Shop at ECS Tuning | ||||
| 06 | Petrol gauge | 55L | 1 | 62131374826 | Shop at ECS Tuning | |||||
| 08 | Temperature gauge | 1 | 62131374818 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 324d Instruments?
- This technical diagram illustrates the Instruments within the Instruments, Measuring systems group for the 3 Series E30 324d produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Speedometer (Part #62121385363).
- Which models use the hardware listed in this Instruments?
- The hardware and components featured in the Instruments are specific to the 3 Series E30 324d produced during 1990. These technical specifications ensure that parts like the Speedometer (62121385363) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Instruments assembly?
- Each item in the Instruments corresponds to the numbered list below the illustration. For the 3 Series E30 324d, you can identify the Speedometer by locating its position on the schematic, which then links to the official BMW part number 62121385363 for the Instruments, Measuring systems section.
