Additional information instruments for BMW 3 Series E30 325e (1987)

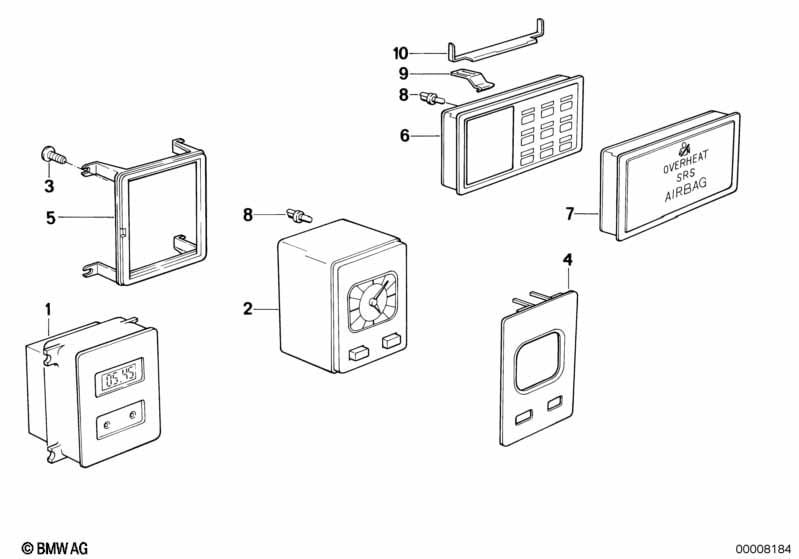

This Additional information instruments technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Clock | 1 | 09/1985 | 62131376903 | $154.64 | ENDED | Shop at ECS Tuning | |||
| 03 | Fillister head screw | M3X10-Z4-1 | 4 | 07119907605 | $0.38 | ENDED | Shop at ECS Tuning | |||
| 04 | Cover | 1 | 09/1985 | 62131376904 | ENDED | Shop at ECS Tuning | ||||
| 05 | Holder | 1 | 09/1985 | 62131380009 | $3.09 | Shop at ECS Tuning | ||||
| 06 | Check unit | (ENGLISH) | 1 | 62141368952 | $328.25 | Shop at ECS Tuning | ||||
| 06 | Check unit | (ITALIANO) | 1 | 62141374501 | ENDED | Shop at ECS Tuning | ||||
| 06 | Check unit | 1 | 62141380631 | ENDED | Shop at ECS Tuning | |||||
| 06 | Check unit | 1 | 62141380637 | ENDED | Shop at ECS Tuning | |||||
| 06 | Check unit | 1 | 62141380638 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Airbag |
=Yes |
|||||||||
| 06 | Check unit | (ESPANOL) | 1 | 62141377007 | $254.45 | ENDED | Shop at ECS Tuning | |||
| 06 | Check unit | (FRANCAISE) | 1 | 62141377008 | ENDED | Shop at ECS Tuning | ||||
| 06 | Check unit | (ITALIANO) | 1 | 62141377009 | ENDED | Shop at ECS Tuning | ||||
| 06 | Check unit | (ENGLISH) | 1 | 62141377011 | ENDED | Shop at ECS Tuning | ||||
| 06 | Check unit | 1 | 62141380641 | ENDED | Shop at ECS Tuning | |||||
| 07 | Tell-tale | 1 | 63311376895 | $66.58 | Shop at ECS Tuning | |||||
| 08 | Bulb | 1,2W | 2 | 62111368299 | $3.00 | Shop at ECS Tuning | ||||
| 09 | Clip | 2 | 62141369638 | $0.50 | ENDED | Shop at ECS Tuning | ||||
| 10 | Bow | 1 | 62141373174 | $0.82 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325e Additional information instruments?
- This technical diagram illustrates the Additional information instruments within the Instruments, Measuring systems group for the 3 Series E30 325e produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Clock (Part #62131376903).
- Which models use the hardware listed in this Additional information instruments?
- The hardware and components featured in the Additional information instruments are specific to the 3 Series E30 325e produced during 1987. These technical specifications ensure that parts like the Clock (62131376903) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Additional information instruments assembly?
- Each item in the Additional information instruments corresponds to the numbered list below the illustration. For the 3 Series E30 325e, you can identify the Clock by locating its position on the schematic, which then links to the official BMW part number 62131376903 for the Instruments, Measuring systems section.
