Clock/digital clock-additional heater for BMW 5 Series E28 520i (1982)

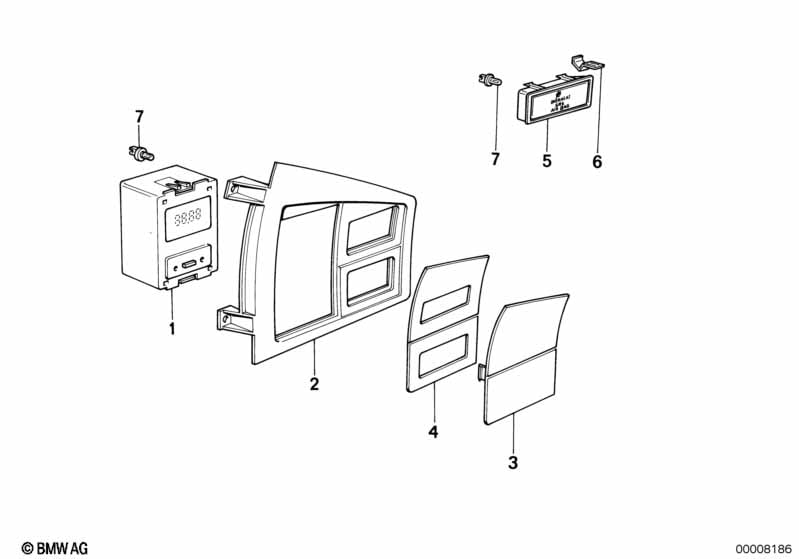

This Clock/digital clock-additional heater technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Digital clock | 1 | 62131368783 | ENDED | Shop at ECS Tuning | |||||
| 01 | Digital clock | 24H LCD | 1 | 62131368788 | ENDED | Shop at ECS Tuning | ||||
| 01 | Digital clock-timer f. additional heater | 24H LCD | 1 | 62131370445 | ENDED | Shop at ECS Tuning | ||||
| 02 | Covering digital clock | 1 | 62131367686 | $11.82 | ENDED | Shop at ECS Tuning | ||||
| 02 | Cover.car computer/timer additio.heater | 1 | 62131367688 | $70.20 | ENDED | Shop at ECS Tuning | ||||
| 03 | Plug | 1 | 62131367685 | $4.82 | ENDED | Shop at ECS Tuning | ||||
| 04 | Cover | 1 | 62131367684 | $4.52 | Shop at ECS Tuning | |||||
| For vehicles with Airbag |
=Yes |
|||||||||
| 05 | Tell-tale | 1 | 63311376895 | $66.58 | Shop at ECS Tuning | |||||
| 06 | Clip | 1 | 62141369638 | $0.50 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bulb | 2W | 1 | 62111375774 | $3.00 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Digital clock-timer f. additional heater | 24H LCD | X | 62131370445 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Airbag |
=Yes |
|||||||||
| 07 | Bulb | 1,2W | 1 | 62111368299 | $3.00 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
