Outdoor temperature/digital clock for BMW 5 Series E28 535i (1987)

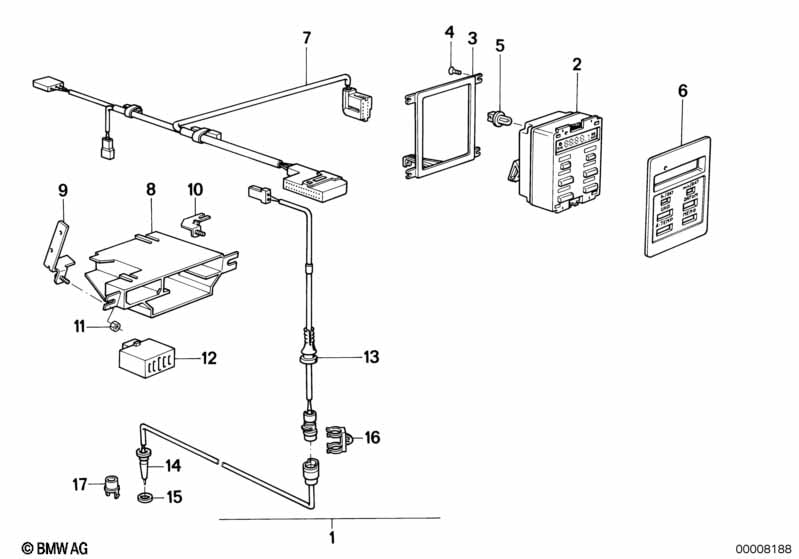

This Outdoor temperature/digital clock technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Inst.set outdoor temp./digital clock | 1 | 62139058439 | ENDED | Shop at ECS Tuning | |||||
| 02 | Outdoor temperature/digital clock | 1 | 62131377803 | $154.64 | ENDED | Shop at ECS Tuning | ||||
| 03 | Holder | 1 | 62131380009 | $3.09 | Shop at ECS Tuning | |||||
| 04 | Fillister head screw | M3X10-Z4-1 | 3 | 07119907605 | $0.38 | ENDED | Shop at ECS Tuning | |||
| 05 | Bulb | 1,2W | 2 | 62111368299 | $3.00 | Shop at ECS Tuning | ||||
| 06 | Cover | (DEUTSCH) | 1 | 62131377805 | ENDED | Shop at ECS Tuning | ||||
| 06 | Cover | (ENGLISH) | 1 | 62131377806 | $6.50 | Shop at ECS Tuning | ||||
| 06 | Cover | (FRANCAISE) | 1 | 62131377807 | $9.15 | Shop at ECS Tuning | ||||
| 06 | Cover | (ITALIANO) | 1 | 62131377808 | ENDED | Shop at ECS Tuning | ||||
| 06 | Cover | (ESPANOL) | 1 | 62131377809 | $5.19 | ENDED | Shop at ECS Tuning | |||
| 07 | Wiring outdoor temperature/digital clock | 1 | 61121377862 | $50.78 | ENDED | Shop at ECS Tuning | ||||
| 08 | Holder | 1 | 65711374589 | $13.43 | Shop at ECS Tuning | |||||
| 09 | Bracket exterior | 1 | 65711373948 | $7.81 | ENDED | Shop at ECS Tuning | ||||
| 10 | Bracket inner | 1 | 65711373946 | ENDED | Shop at ECS Tuning | |||||
| 11 | Hex nut with plate | M6 | 1 | 07147134319 | $1.05 | Shop at ECS Tuning | ||||
| 12 | Gong | 1 | 65811377810 | $75.76 | Shop at ECS Tuning | |||||
| For vehicles with Saudi Arabia version |
=Yes |
|||||||||
| 12 | Gong | 1 | 65811377908 | $67.80 | ENDED | Shop at ECS Tuning | ||||
| 13 | Wiring temp.guard | 1 | 61121376434 | $20.51 | ENDED | Shop at ECS Tuning | ||||
| 14 | Outside temperature sensor | 1 | 65811385337 | $80.63 | Shop at ECS Tuning | |||||
| 15 | Gasket ring | A10X13,5-GI | 1 | 07119963070 | $2.10 | Shop at ECS Tuning | ||||
| 16 | Holder | D = 13MM | 1 | 61131371074 | $2.52 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Spoiler front |
=Yes |
|||||||||
| 17 | Bracket outside temperature sensor | 1 | 65811370116 | $1.34 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
