On-board computer for BMW 7 Series E32 730i (1994)

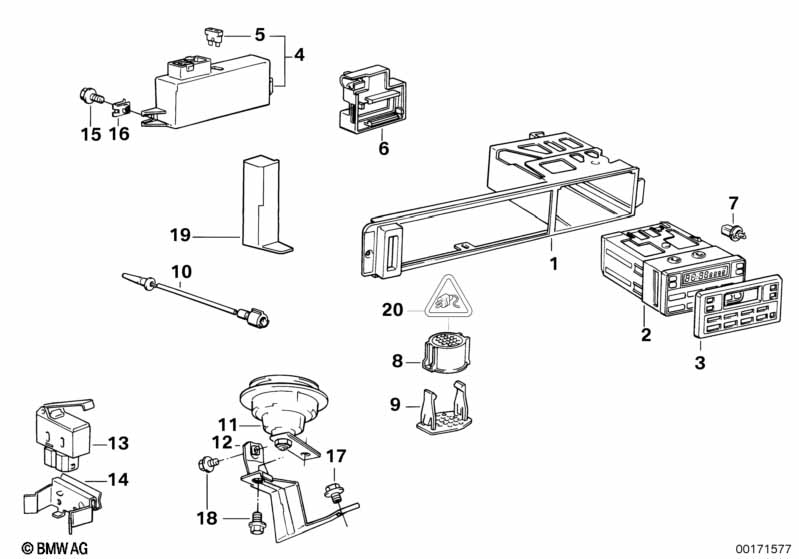

This On-board computer technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support radio/on bord computer | 1 | 65811374212 | $55.32 | Shop at ECS Tuning | |||||
| 02 | Input unit on-board computer | 1 | 09/1987 | 65811384149 | $775.35 | Shop at ECS Tuning | ||||
| 02 | Input unit on-board computer | 1 | 09/1987 | 65818351055 | $820.95 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering car computer | (DEUTSCH) | 1 | 09/1987 | 65811384451 | $23.16 | Shop at ECS Tuning | |||
| 03 | Covering car computer | (ENGLISH) | 1 | 09/1987 | 65811384452 | $27.22 | Shop at ECS Tuning | |||
| 03 | Covering car computer | (FRANCAISE) | 1 | 09/1987 | 65811384453 | Shop at ECS Tuning | ||||
| 03 | Covering car computer | (ITALIANO) | 1 | 09/1987 | 65811384454 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering car computer | (ESPANOL) | 1 | 09/1987 | 65811384455 | $21.20 | ENDED | Shop at ECS Tuning | ||
| 04 | Relay | 1 | 65811378027 | $57.03 | Shop at ECS Tuning | |||||
| 05 | Fuse blue | 15A | 1 | 61131372526 | Shop at ECS Tuning | |||||
| 05 | Fuse Maxi, yellow | 20A | 1 | 61131372527 | Shop at ECS Tuning | |||||
| 06 | Radiocontact | 1 | 65758366215 | $36.48 | Shop at ECS Tuning | |||||
| 07 | Bulb | 1,2W | 4 | 09/1987 | 62111368299 | $3.00 | Shop at ECS Tuning | |||
| 08 | Gong with holder | 1 | 65819155105 | $82.98 | Shop at ECS Tuning | |||||
| 09 | Gong with holder | 1 | 04/1994 | 65818356239 | $59.70 | ENDED | Shop at ECS Tuning | |||
| 09 | Gong with holder | 1 | 65819155105 | $82.98 | Shop at ECS Tuning | |||||
| 10 | Outside temperature sensor | 1 | 10/1988 | 65811383204 | ENDED | Shop at ECS Tuning | ||||
| 10 | Outside temperature sensor | 1 | 10/1988 | 65811383204 | ENDED | Shop at ECS Tuning | ||||
| 11 | Horn | HELLA 335HZ | 1 | 61331379090 | $61.15 | Shop at ECS Tuning | ||||
| 12 | Bracket horn | 1 | 65811378029 | $2.57 | Shop at ECS Tuning | |||||
| 13 | Microswitch | 1 | 65751391850 | $50.14 | ENDED | Shop at ECS Tuning | ||||
| 14 | Bracket micro switch | 1 | 65711378069 | $2.88 | Shop at ECS Tuning | |||||
| 15 | Fillister head self-tapping screw | ST4,8X13 | 2 | 07119907786 | $0.11 | Shop at ECS Tuning | ||||
| 16 | Body nut | ST 4,8-8-ZNS | 2 | 07129904227 | $0.27 | Shop at ECS Tuning | ||||
| 17 | Hex bolt with washer | M6X12-U2-8.8 | 1 | 07119904459 | $0.65 | Shop at ECS Tuning | ||||
| 18 | Hex bolt with washer | M6X16-Z3-1 | 3 | 07119915018 | $0.71 | Shop at ECS Tuning | ||||
| 20 | Universal socket housing, uncoded | 3 POL. | 1 | 61138352304 | $16.65 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 watertight | 0,5-1,0 MM² | 3 | 61130007441 | $5.53 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
