Additional information instruments for BMW 7 Series E32 735iL (1992)

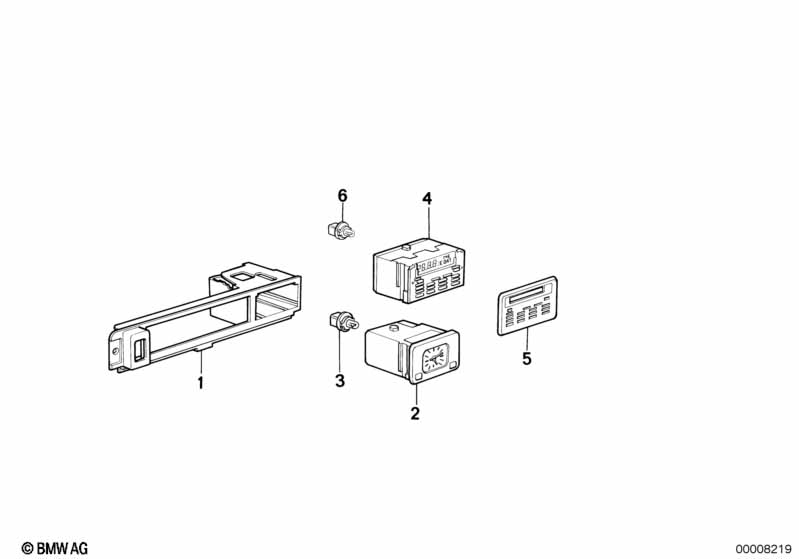

This Additional information instruments technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 735iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support radio/clock | 1 | 62131374211 | ENDED | Shop at ECS Tuning | |||||
| 04 | Outdoor temperature/digital clock | 1 | 62131374288 | $148.00 | Shop at ECS Tuning | |||||
| 05 | Cover f outdoor temperat./digital clock | (ENGLISH) | 1 | 62131374292 | $18.43 | Shop at ECS Tuning | ||||
| 06 | Bulb | 1,2W | 1 | 62111368299 | $3.00 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 735iL Additional information instruments?
- This technical diagram illustrates the Additional information instruments within the Instruments, Measuring systems group for the 7 Series E32 735iL produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Support radio/clock (Part #62131374211).
- Which models use the hardware listed in this Additional information instruments?
- The hardware and components featured in the Additional information instruments are specific to the 7 Series E32 735iL produced during 1992. These technical specifications ensure that parts like the Support radio/clock (62131374211) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Additional information instruments assembly?
- Each item in the Additional information instruments corresponds to the numbered list below the illustration. For the 7 Series E32 735iL, you can identify the Support radio/clock by locating its position on the schematic, which then links to the official BMW part number 62131374211 for the Instruments, Measuring systems section.
