Additional information instruments for BMW 3 Series E36 M3 (1999)

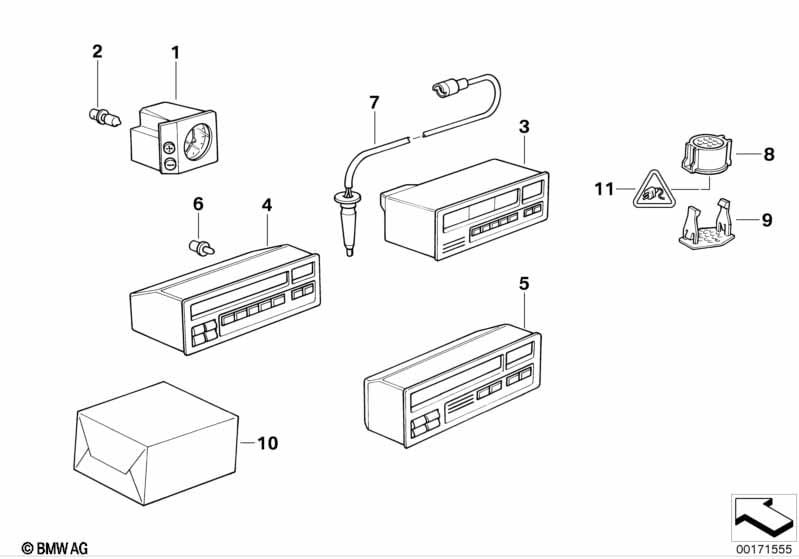

This Additional information instruments technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Check-control/outdoor temperat.indicator | DEUTSCH | 1 | 62136913864 | ENDED | Shop at ECS Tuning | ||||
| 04 | Check-control/outdoor temperat.indicator | ENGLISH | 1 | 62136913865 | $528.15 | ENDED | Shop at ECS Tuning | |||
| 05 | Check Control | ENGLISH | 1 | 62136913860 | $458.25 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Bulb | 12V 1,5W | 4 | 62111391260 | $3.00 | ENDED | Shop at ECS Tuning | |||
| 07 | Outside temperature sensor | 1 | 65811383204 | ENDED | Shop at ECS Tuning | |||||
| 08 | Gong with holder | 1 | 65819155105 | $82.98 | Shop at ECS Tuning | |||||
| 09 | Gong with holder | 1 | 65819155105 | $82.98 | Shop at ECS Tuning | |||||
| 11 | Universal socket housing, uncoded | 3 POL. | 1 | 61138352304 | $16.65 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 watertight | 0,5-1,0 MM² | 3 | 61130007441 | $5.53 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 M3 Additional information instruments?
- This technical diagram illustrates the Additional information instruments within the Instruments, Measuring systems group for the 3 Series E36 M3 produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Check-control/outdoor temperat.indicator (Part #62136913864).
- Which models use the hardware listed in this Additional information instruments?
- The hardware and components featured in the Additional information instruments are specific to the 3 Series E36 M3 produced during 1999. These technical specifications ensure that parts like the Check-control/outdoor temperat.indicator (62136913864) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Additional information instruments assembly?
- Each item in the Additional information instruments corresponds to the numbered list below the illustration. For the 3 Series E36 M3, you can identify the Check-control/outdoor temperat.indicator by locating its position on the schematic, which then links to the official BMW part number 62136913864 for the Instruments, Measuring systems section.
