On-board computer for BMW 3 Series E36 325i (1995)

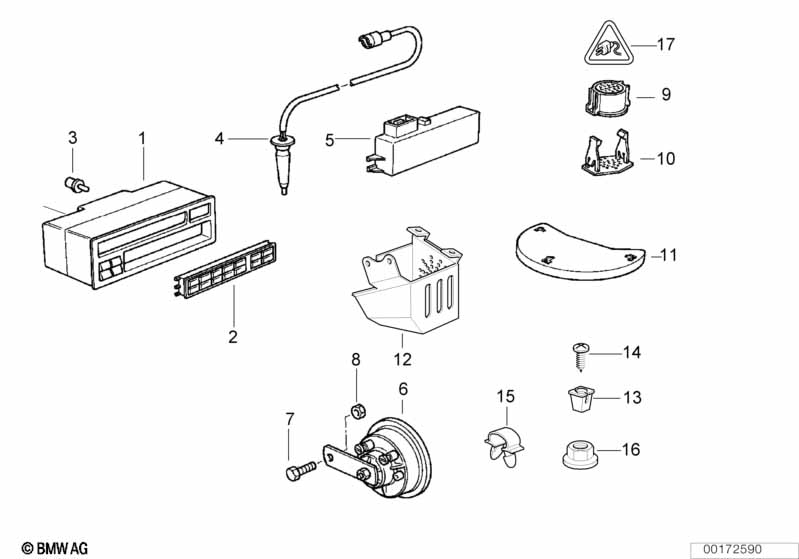

This On-board computer technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Input unit on-board computer uncoded | DEUTSCH | 1 | 65818357683 | $672.39 | Shop at ECS Tuning | ||||
| 01 | Input unit on-board computer uncoded | ENGLISH | 1 | 65818357684 | $775.35 | ENDED | Shop at ECS Tuning | |||
| 01 | Input unit on-board computer uncoded | FRANCAISE | 1 | 65818357685 | $775.35 | Shop at ECS Tuning | ||||
| 01 | Input unit on-board computer uncoded | ITALIANO | 1 | 65818357686 | $672.39 | ENDED | Shop at ECS Tuning | |||
| 01 | Input unit on-board computer uncoded | ESPANOL | 1 | 65818357687 | $775.35 | Shop at ECS Tuning | ||||
| 03 | Bulb | 12V 1,5W | 1 | 62111391260 | $3.00 | ENDED | Shop at ECS Tuning | |||
| 04 | Outside temperature sensor | 1 | 65811383204 | ENDED | Shop at ECS Tuning | |||||
| 05 | Relay for onboard computer | 1 | 65818354172 | $60.86 | Shop at ECS Tuning | |||||
| 06 | Horn | HELLA 335HZ | 1 | 61331379090 | $61.15 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X12-U2-8.8 | 1 | 07119904459 | $0.65 | Shop at ECS Tuning | ||||
| 08 | Self-locking hex nut | M6 | 1 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 09 | Gong with holder | 1 | 65819155105 | $82.98 | Shop at ECS Tuning | |||||
| 10 | Gong with holder | 1 | 65819155105 | $82.98 | Shop at ECS Tuning | |||||
| 12 | Covering horn | 1 | 09/1993 | 65758367700 | $11.83 | Shop at ECS Tuning | ||||
| 13 | Expanding nut | ST 4.8 | 2 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 14 | Fillister head self-tapping screw | ST4,8X16-Z1 | 2 | 07119907925 | $0.25 | Shop at ECS Tuning | ||||
| 15 | Tubing support | D=10,8MM | 1 | 64111364073 | $0.57 | Shop at ECS Tuning | ||||
| 16 | Collar nut | M8-8-SC-ZNNIV | 1 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 17 | Universal socket housing, uncoded | 3 POL. | 1 | 61138352304 | $16.65 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 watertight | 0,5-1,0 MM² | 3 | 61130007441 | $5.53 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
