Additional information instruments for BMW R50/5-R90S 69-76 R90S (1976)

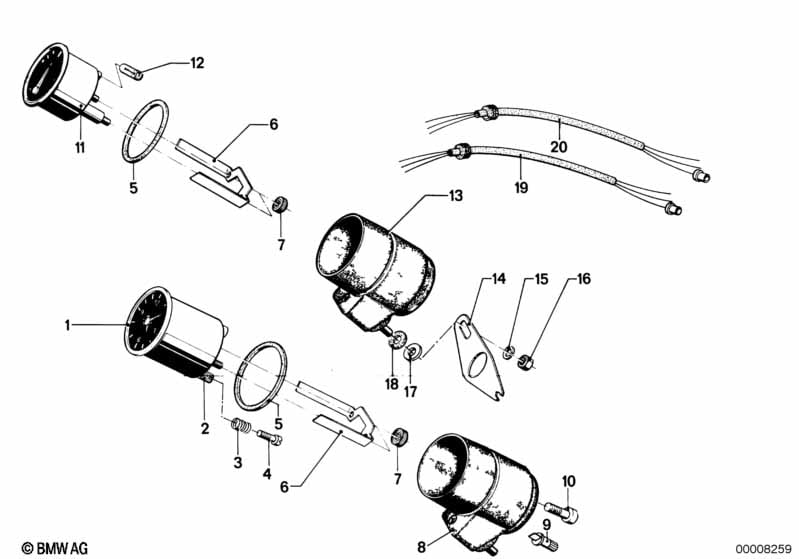

This Additional information instruments technical drawing provides a detailed breakdown of the assembly for the R50/5-R90S 69-76 R90S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Clock | 1 | 62131244638 | $229.48 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Rotary knob | 1 | 62131243102 | $2.48 | Shop at ECS Tuning | |||||
| 03 | Spring | 1 | 62131243104 | $1.15 | Shop at ECS Tuning | |||||
| 04 | Screw | 1 | 62131243103 | $0.84 | ENDED | Shop at ECS Tuning | ||||
| 05 | Gasket ring | 2 | 62131243100 | $2.48 | ENDED | Shop at ECS Tuning | ||||
| 06 | Holder | 2 | 62131357801 | $7.51 | ENDED | Shop at ECS Tuning | ||||
| 07 | Knurled nut | 4 | 62131459257 | $1.09 | ENDED | Shop at ECS Tuning | ||||
| 11 | Voltmeter | 1 | 62131357852 | $191.58 | ENDED, +core | Shop at ECS Tuning | ||||
| 12 | Bulb | 12V 2W | 2 | 07119978279 | $1.79 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
