Instruments for BMW 6 Series E24 635CSi (1989)

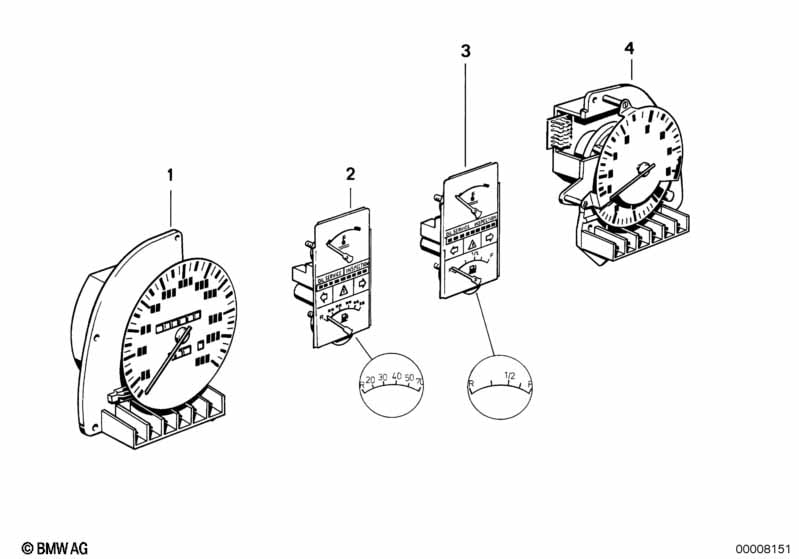

This Instruments technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Speedometer | MPH+KM/H | 1 | 05/1982 | 62121377686 | $431.75 | ENDED | Shop at ECS Tuning | ||
| 01 | Speedometer | MPH+KM/H | 1 | 05/1982 | 62121377686 | $431.75 | ENDED | Shop at ECS Tuning | ||
| 01 | Speedometer | KM/H | 1 | 05/1982 | 62121380415 | $509.18 | Shop at ECS Tuning | |||
| 01 | Speedometer | KM/H | 1 | 05/1982 | 62121380415 | $509.18 | Shop at ECS Tuning | |||
| For vehicles with Saudi Arabia version |
=Yes |
|||||||||
| 01 | Speedometer | KM/H | 1 | 09/1982 | 62121380425 | ENDED | Shop at ECS Tuning | |||
| 01 | Speedometer | KM/H | 1 | 09/1982 | 62121380425 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Switzerland and Sweden version |
L804A=Yes =Yes |
|||||||||
| 01 | Speedometer | KM/H | 1 | 09/1982 | 62121380418 | ENDED | Shop at ECS Tuning | |||
| 01 | Speedometer | KM/H | 1 | 09/1982 | 62121380418 | ENDED | Shop at ECS Tuning | |||
| 02 | Instrument panel | 70L | 1 | 01/1986 | 62131377621 | $401.76 | Shop at ECS Tuning | |||
| 02 | Instrument panel | 70L | 1 | 01/1986 | 62131377621 | $401.76 | Shop at ECS Tuning | |||
| 03 | Instrument panel | 70L | 1 | 01/1986 | 62131377621 | $401.76 | Shop at ECS Tuning | |||
| 03 | Instrument panel | 70L | 1 | 01/1986 | 62131377621 | $401.76 | Shop at ECS Tuning | |||
| 04 | Revolution counter w.fuel economy contr. | L/100KM | 1 | 01/1986 | 62131377603 | $242.17 | Shop at ECS Tuning | |||
| 04 | Revolution counter w.fuel economy contr. | L/100KM | 1 | 01/1986 | 62131377603 | $242.17 | Shop at ECS Tuning | |||
| 04 | Revolution counter w.fuel economy contr. | MPG | 1 | 01/1986 | 62131377604 | $521.44 | Shop at ECS Tuning | |||
| 04 | Revolution counter w.fuel economy contr. | MPG | 1 | 01/1986 | 62131377604 | $521.44 | Shop at ECS Tuning | |||
| For vehicles with National version Switzerland and Sweden version |
L804A=Yes =Yes |
|||||||||
| 04 | Revolution counter w.fuel economy contr. | L/100KM | 1 | 01/1986 | 62131377603 | $242.17 | Shop at ECS Tuning | |||
| 04 | Revolution counter w.fuel economy contr. | L/100KM | 1 | 01/1986 | 62131377603 | $242.17 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
