Instruments combinat-.single components for BMW 7 Series E23 728i (1982)

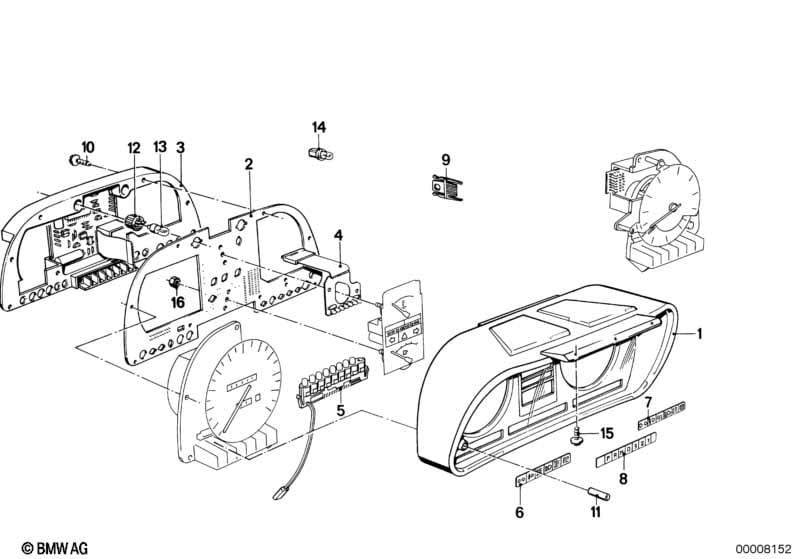

This Instruments combinat-.single components technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Dashboard support | 1 | 09/1981 | 01/1986 | 62111376715 | $178.78 | ENDED | Shop at ECS Tuning | ||
| 02 | Printed circuit board | 1 | 09/1981 | 01/1986 | 62111369986 | $321.62 | Shop at ECS Tuning | |||
| 03 | Conductor plate with cover plate | 1 | 09/1981 | 01/1986 | 62111394270 | $637.52 | ENDED | Shop at ECS Tuning | ||
| 04 | Printed circuit board | 1 | 09/1981 | 01/1986 | 62111370238 | $79.30 | Shop at ECS Tuning | |||

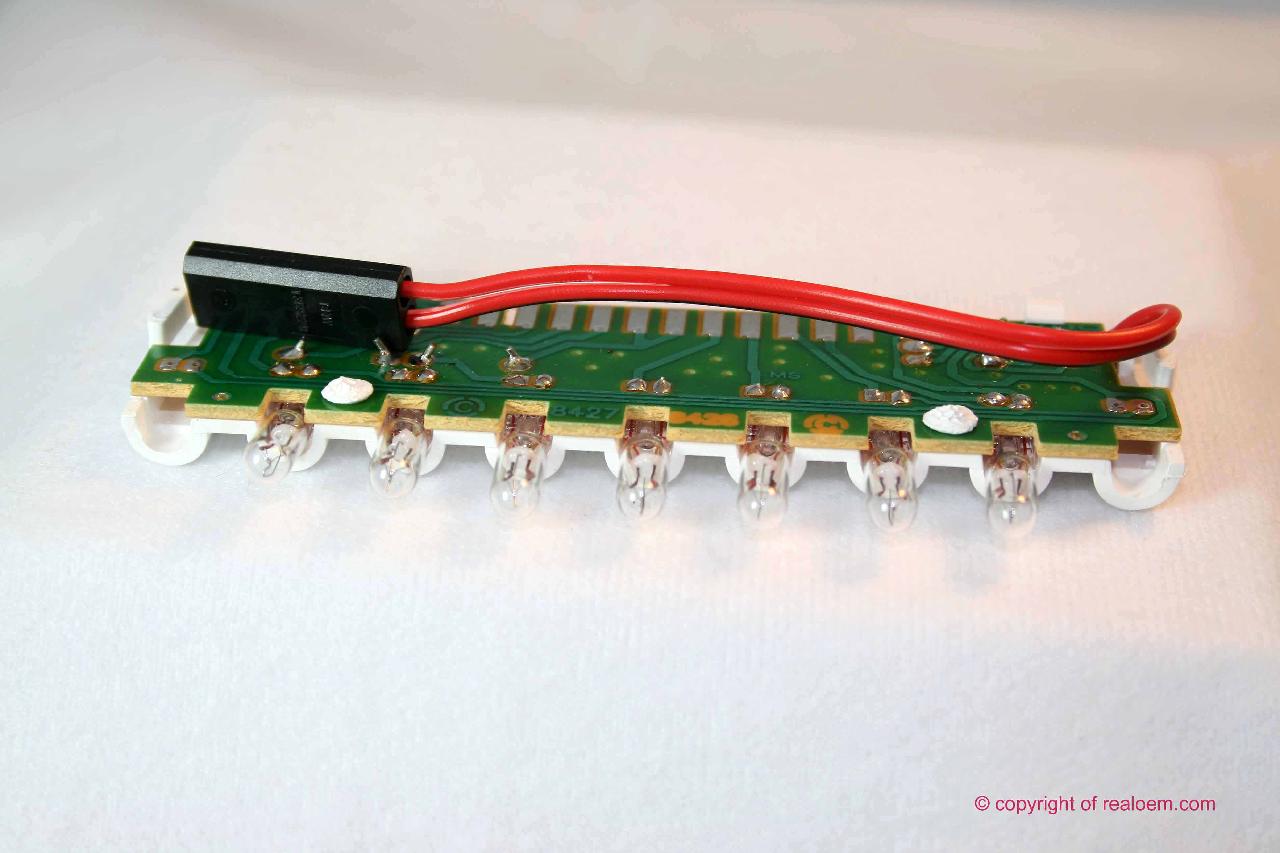

| 05 | Conductor plate gear indication | 3HP22/4HP22 | 1 | 09/1981 | 62111369989 | $97.65 | ENDED | Shop at ECS Tuning | ||
| 06 | Control symbol light left | 1 | 09/1981 | 62111381815 | $6.63 | ENDED | Shop at ECS Tuning | |||
| 07 | Control symbol light right | 1 | 09/1981 | 62111376709 | $6.54 | Shop at ECS Tuning | ||||
| 08 | Gear position indicator | 1 | 09/1981 | 62111373092 | $6.02 | Shop at ECS Tuning | ||||
| 09 | Coding plug | 1 | 09/1981 | 09/1984 | 62111370243 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO TIRES 205/70 | ||||||||||
| 09 | Coding plug | 1 | 09/1981 | 09/1984 | 62111371674 | Shop at ECS Tuning | ||||
| 10 | Fillister head self-tapping screw | ST3,5X16 | 8 | 09/1981 | 07119905240 | Shop at ECS Tuning | ||||
| 11 | Push-button | 1 | 09/1981 | 62121363213 | $2.16 | Shop at ECS Tuning | ||||
| 12 | Bulb socket | 3 | 09/1981 | 62111376716 | $3.94 | Shop at ECS Tuning | ||||
| 13 | Bulb | W3W | 3 | 09/1981 | 07119905358 | $1.96 | Shop at ECS Tuning | |||
| 14 | Bulb | 1,2W | X | 09/1981 | 62111368299 | $3.00 | Shop at ECS Tuning | |||
| 15 | Recessed oval head sheet-metal screw | ST2,9X13 | 3 | 09/1981 | 07119902412 | $1.30 | Shop at ECS Tuning | |||
| 16 | Hex nut | M4-A2-70 | 2 | 09/1981 | 07119922854 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
