Instruments combinat-.single components for BMW 6 Series E24 635CSi (1989)

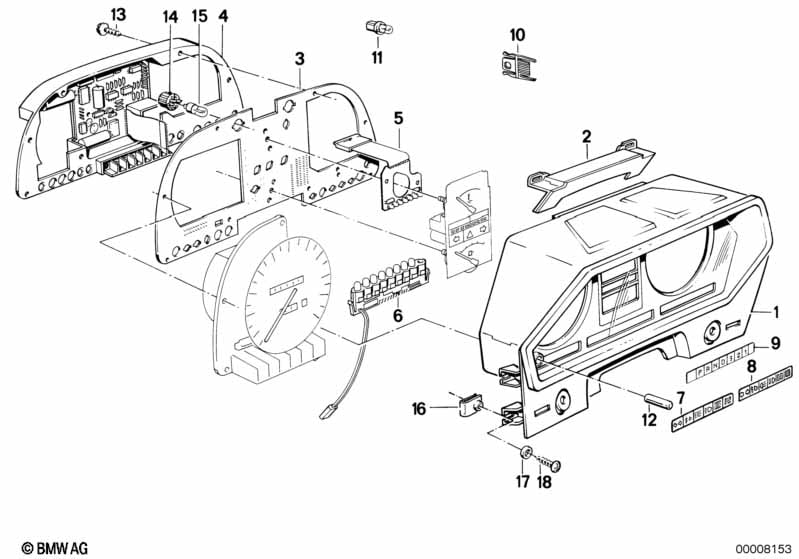

This Instruments combinat-.single components technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Dashboard support | 1 | 01/1986 | 62111377634 | $490.11 | ENDED | Shop at ECS Tuning | |||
| 01 | Dashboard support | 1 | 01/1986 | 62111377634 | $490.11 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Airbag |
=Yes |
|||||||||
| 01 | Dashboard support | 1 | 05/1982 | 62111377634 | $490.11 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Dashboard support | 1 | 05/1982 | 62111377634 | $490.11 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Cover | 1 | 05/1982 | 62111376159 | $29.04 | ENDED | Shop at ECS Tuning | |||
| -- | Cover | 1 | 05/1982 | 62111376159 | $29.04 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover | 1 | 05/1982 | 62111376159 | $29.04 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover | 1 | 05/1982 | 62111376159 | $29.04 | ENDED | Shop at ECS Tuning | |||
| 03 | Conductor plate with cover plate | 1 | 01/1986 | 62111385094 | $756.21 | ENDED | Shop at ECS Tuning | |||
| 03 | Conductor plate with cover plate | 1 | 01/1986 | 62111385094 | $756.21 | ENDED | Shop at ECS Tuning | |||
| 04 | Conductor plate with cover plate | 1 | 01/1986 | 62111385094 | $756.21 | ENDED | Shop at ECS Tuning | |||
| 04 | Conductor plate with cover plate | 1 | 01/1986 | 62111385094 | $756.21 | ENDED | Shop at ECS Tuning | |||
| 05 | Printed circuit board | 1 | 01/1986 | 62131377648 | $74.67 | ENDED | Shop at ECS Tuning | |||
| 05 | Printed circuit board | 1 | 01/1986 | 62131377648 | $74.67 | ENDED | Shop at ECS Tuning | |||
| 07 | Control symbol light left | 1 | 06/1987 | 62111381815 | $6.63 | ENDED | Shop at ECS Tuning | |||
| 07 | Control symbol light left | 1 | 06/1987 | 62111381815 | $6.63 | ENDED | Shop at ECS Tuning | |||
| 08 | Control symbol light right | 1 | 05/1982 | 62111376709 | $6.54 | Shop at ECS Tuning | ||||
| 08 | Control symbol light right | 1 | 05/1982 | 62111376709 | $6.54 | Shop at ECS Tuning | ||||
| 10 | Coding plug | 1 | 12/1986 | 62111381837 | $70.87 | Shop at ECS Tuning | ||||
| 10 | Coding plug | 1 | 12/1986 | 62111381837 | $70.87 | Shop at ECS Tuning | ||||
| 11 | Bulb | 1,2W | X | 05/1982 | 62111368299 | $3.00 | Shop at ECS Tuning | |||
| 11 | Bulb | 1,2W | X | 05/1982 | 62111368299 | $3.00 | Shop at ECS Tuning | |||
| 12 | Push-button | 1 | 05/1982 | 62121363213 | $2.16 | Shop at ECS Tuning | ||||
| 12 | Push-button | 1 | 05/1982 | 62121363213 | $2.16 | Shop at ECS Tuning | ||||
| 13 | Fillister head self-tapping screw | ST3,5X16 | 8 | 05/1982 | 07119905240 | Shop at ECS Tuning | ||||
| 13 | Fillister head self-tapping screw | ST3,5X16 | 8 | 05/1982 | 07119905240 | Shop at ECS Tuning | ||||
| 14 | Bulb socket | 3 | 05/1982 | 62111376716 | $3.94 | Shop at ECS Tuning | ||||
| 14 | Bulb socket | 3 | 05/1982 | 62111376716 | $3.94 | Shop at ECS Tuning | ||||
| 15 | Bulb | W3W | 3 | 05/1982 | 07119905358 | $1.96 | Shop at ECS Tuning | |||
| 15 | Bulb | W3W | 3 | 05/1982 | 07119905358 | $1.96 | Shop at ECS Tuning | |||
| 16 | Body nut | ST4,8-13-ZNS3 | 4 | 05/1982 | 07129904223 | $0.11 | Shop at ECS Tuning | |||
| 16 | Body nut | ST4,8-13-ZNS3 | 4 | 05/1982 | 07129904223 | $0.11 | Shop at ECS Tuning | |||
| 17 | Washer | 10X5,3X1-200 HV | 4 | 05/1982 | 07119904206 | Shop at ECS Tuning | ||||
| 17 | Washer | 10X5,3X1-200 HV | 4 | 05/1982 | 07119904206 | Shop at ECS Tuning | ||||
| 17 | Washer | 5.3-140 HV-ZNS | 4 | 05/1982 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 17 | Washer | 5.3-140 HV-ZNS | 4 | 05/1982 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 18 | Fillister head self-tapping screw | ST4,8X16 Z2 | 4 | 05/1982 | 07119907789 | $0.13 | ENDED | Shop at ECS Tuning | ||
| 18 | Fillister head self-tapping screw | ST4,8X16 Z2 | 4 | 05/1982 | 07119907789 | $0.13 | ENDED | Shop at ECS Tuning | ||
