Additional information instruments for BMW 5 Series E34 525i (1996)

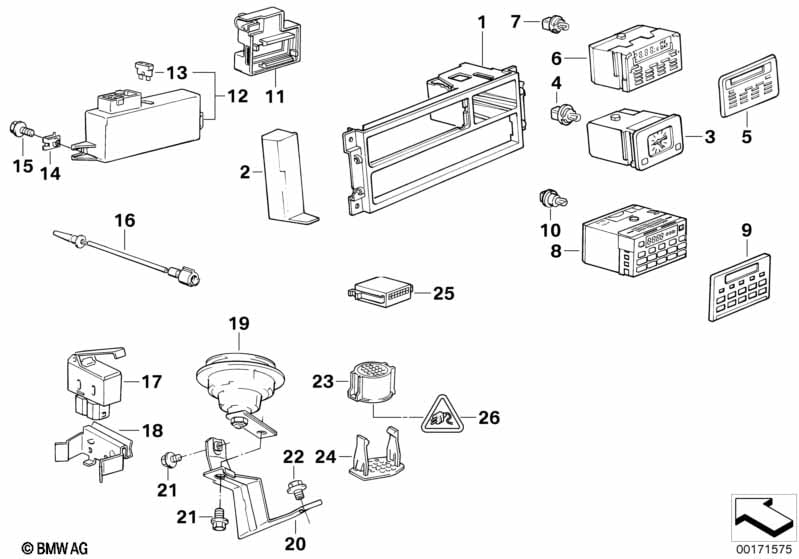

This Additional information instruments technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Clock |
=Yes |
|||||||||
| 01 | Support radio/clock | 1 | 65811384142 | Shop at ECS Tuning | ||||||
| For vehicles with On-board computer |
=Yes |
|||||||||
| 01 | Support radio/on bord computer | 1 | 65811384140 | Shop at ECS Tuning | ||||||
| 02 | Covering right | 1 | 65811384788 | $6.33 | ENDED | Shop at ECS Tuning | ||||
| 02 | Covering left | 1 | 65811384789 | Shop at ECS Tuning | ||||||
| 03 | Clock | 1 | 62131374282 | $148.00 | Shop at ECS Tuning | |||||
| 04 | Bulb | 2W | 1 | 62111375774 | $3.00 | Shop at ECS Tuning | ||||
| 05 | Cover f outdoor temperat./digital clock | (ENGLISH) | 1 | 62131374292 | $18.43 | Shop at ECS Tuning | ||||
| 06 | Outdoor temperature/digital clock | 1 | 62131374288 | $148.00 | Shop at ECS Tuning | |||||
| 07 | Bulb | 1,2W | 1 | 62111368299 | $3.00 | Shop at ECS Tuning | ||||
| 08 | Input unit on-board computer | 1 | 65811384149 | $775.35 | Shop at ECS Tuning | |||||
| 09 | Covering car computer | (ENGLISH) | 1 | 65811384452 | $27.22 | Shop at ECS Tuning | ||||
| 10 | Bulb | 6,5V 0,8W | 4 | 65811374495 | $7.14 | Shop at ECS Tuning | ||||
| 11 | Radiocontact | 1 | 65758366215 | $36.48 | Shop at ECS Tuning | |||||
| 12 | Relay | 1 | 65811378027 | $57.03 | Shop at ECS Tuning | |||||
| 13 | Fuse blue | 15A | 1 | 61131372526 | Shop at ECS Tuning | |||||
| 13 | Fuse Maxi, yellow | 20A | 1 | 61131372527 | Shop at ECS Tuning | |||||
| 14 | Body nut | ST 4,8-8-ZNS | 2 | 07129904227 | $0.27 | Shop at ECS Tuning | ||||
| 15 | Fillister head self-tapping screw | ST4,8X13 | 2 | 07119907786 | $0.11 | Shop at ECS Tuning | ||||
| 16 | Outside temperature sensor | 1 | 12/1988 | 65811383204 | ENDED | Shop at ECS Tuning | ||||
| 17 | Microswitch | 1 | 65751391850 | $50.14 | ENDED | Shop at ECS Tuning | ||||
| 18 | Bracket micro switch | 1 | 65711378069 | $2.88 | Shop at ECS Tuning | |||||
| 19 | Horn | HELLA 335HZ | 1 | 61331379090 | $61.15 | Shop at ECS Tuning | ||||
| 20 | Bracket horn | 1 | 65811378778 | $7.92 | ENDED | Shop at ECS Tuning | ||||
| 21 | Hex bolt with washer | M6X16-Z3-1 | 3 | 07119915018 | $0.71 | Shop at ECS Tuning | ||||
| 22 | Hex bolt with washer | M6X12-U2-8.8 | 1 | 07119904459 | $0.65 | Shop at ECS Tuning | ||||
| 23 | Gong with holder | 1 | 65819155105 | $82.98 | Shop at ECS Tuning | |||||
| 24 | Gong with holder | 1 | 65819155105 | $82.98 | Shop at ECS Tuning | |||||
| 26 | Universal socket housing, uncoded | 3 POL. | 1 | 61138352304 | $16.65 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 watertight | 0,5-1,0 MM² | 3 | 61130007441 | $5.53 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
