Instrument cluster for BMW 5 Series E39 523i (2000)

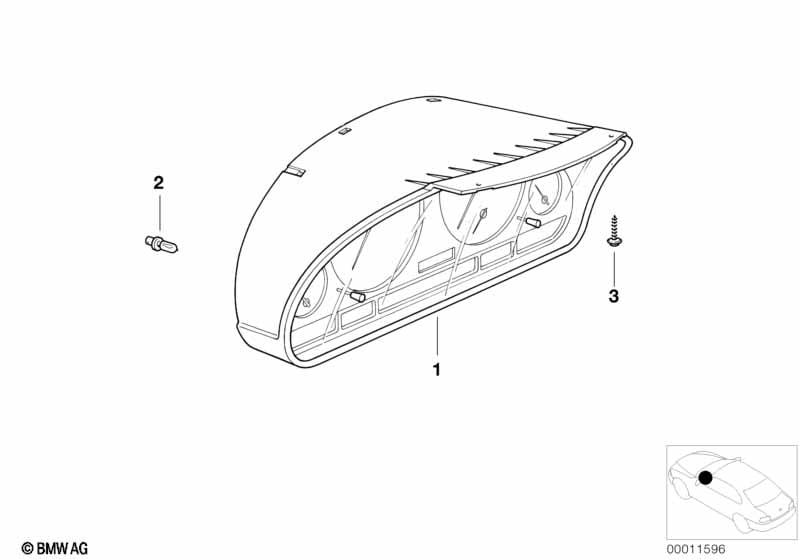

This Instrument cluster technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Instruments combination uncoded | KM/H | 1 | 62106942225 | $786.98 | Shop at ECS Tuning | ||||
| 01 | Instruments combination uncoded | MPH | 1 | 62106942228 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | RP REMAN instrument cluster, uncoded | KM/H | 1 | 09/2000 | 62119155816 | Shop at ECS Tuning | ||||
| For vehicles with National version japan Version with chrome rings |
L807A=Yes |
|||||||||
| 01 | RP REMAN instrument cluster, uncoded | KM/H | 1 | 62119134780 | Shop at ECS Tuning | |||||
| For vehicles with On-board computer V with remote control or TV function or On-board monitor with TV or Navigation system Professional |
S555A=Yes S601A=Yes S602A=Yes S609A=Yes |
|||||||||
| 01 | RP REMAN instrument cluster, uncoded | KM/H / HIGH BC | 1 | 09/2000 | 62119155815 | Shop at ECS Tuning | ||||
| 01 | RP REMAN instrument cluster, uncoded | MPH | 1 | 62119134784 | $889.18 | Shop at ECS Tuning | ||||
| For vehicles with On-board computer V with remote control or TV function or On-board monitor with TV or Navigation system Professional Version with chrome rings |
S555A=Yes S601A=Yes S602A=Yes S609A=Yes |
|||||||||
| 01 | RP REMAN instrument cluster, uncoded | KM/H | 1 | 62119134776 | Shop at ECS Tuning | |||||
| 02 | Bulb | 12V 1,5W | 5 | 62111391260 | $3.00 | ENDED | Shop at ECS Tuning | |||
| 03 | Screw | 2 | 62118375035 | $0.28 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
