Instrument cluster for BMW 3 Series E46 320i (2004)

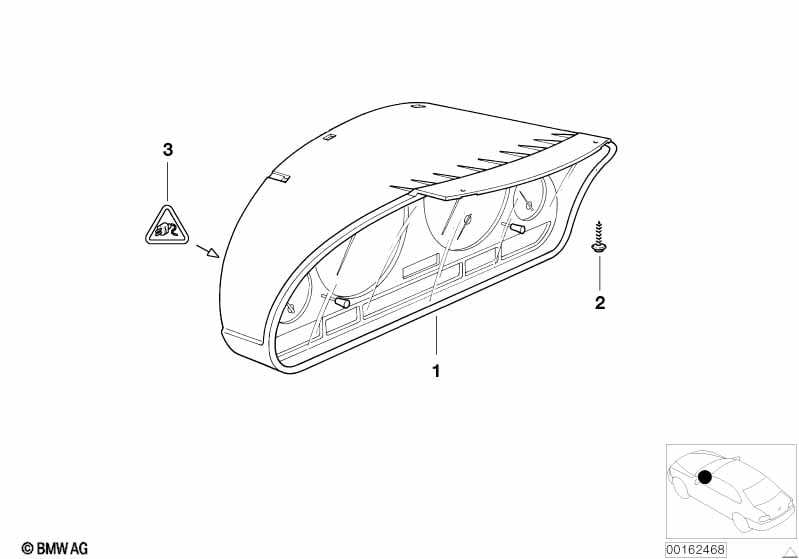

This Instrument cluster technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Automatic transmission or Sequential manual transmission (SMG) |
S205A=Yes S206A=Yes |
|||||||||
| 01 | Instruments combination uncoded | KM/H | 1 | 62116985644 | $765.12 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sequential manual transmission (SMG) and Manual Transmission |
S205A=No S206A=No =Yes |
|||||||||
| 01 | Instruments combination uncoded | KM/H | 1 | 62116985643 | Shop at ECS Tuning | |||||
| 01 | Instruments combination uncoded | MPH | 1 | 62116985647 | $765.12 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sequential manual transmission (SMG) and Kilometer-calibrated speedometer |
S205A=Yes S206A=Yes S548A=No |
|||||||||
| 01 | Instruments combination uncoded | MPH | 1 | 62116985648 | $765.12 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sequential manual transmission (SMG) and Kilometer-calibrated speedometer |
S205A=Yes S206A=No S548A=No |
|||||||||
| 01 | Instruments combination uncoded | MPH | 1 | 62116985648 | $765.12 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sequential manual transmission (SMG) and Kilometer-calibrated speedometer |
S205A=No S206A=Yes S548A=No |
|||||||||
| 01 | Instruments combination uncoded | MPH | 1 | 62116985648 | $765.12 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and Automatic transmission and Sequential manual transmission (SMG) |
L807A=Yes S205A=Yes S206A=No |
|||||||||
| 01 | Instruments combination uncoded | KM/H | 1 | 62116985654 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Automatic transmission and Sequential manual transmission (SMG) |
L807A=Yes S205A=No S206A=Yes |
|||||||||
| 01 | Instruments combination uncoded | KM/H | 1 | 62116985654 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Automatic transmission and Sequential manual transmission (SMG) and Manual Transmission |
L807A=Yes S205A=No S206A=No =Yes |
|||||||||
| 01 | Instruments combination uncoded | KM/H | 1 | 62116985653 | Shop at ECS Tuning | |||||
| 02 | Fillister head self-tapping screw | ST4,2X17 | 2 | 07146977362 | $1.09 | Shop at ECS Tuning | ||||
| 03 | Rep. kit for socket housing | 26 POL. | 1 | 61132471242 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
| -- | Universal socket housing uncoded | 26 POL. | 1 | 61136913626 | $1.05 | Shop at ECS Tuning | ||||
| 03 | Rep. kit for socket housing | 18 POL. | 1 | 61132471241 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
| -- | Universal socket housing uncoded | 18 POL. | 1 | 61138364666 | $0.68 | Shop at ECS Tuning | ||||
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 320i Instrument cluster?
- This technical diagram illustrates the Instrument cluster within the Instruments, Measuring systems group for the 3 Series E46 320i produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Instruments combination uncoded (Part #62116985644).
- Which models use the hardware listed in this Instrument cluster?
- The hardware and components featured in the Instrument cluster are specific to the 3 Series E46 320i produced during 2004. These technical specifications ensure that parts like the Instruments combination uncoded (62116985644) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Instrument cluster assembly?
- Each item in the Instrument cluster corresponds to the numbered list below the illustration. For the 3 Series E46 320i, you can identify the Instruments combination uncoded by locating its position on the schematic, which then links to the official BMW part number 62116985644 for the Instruments, Measuring systems section.
