Instruments/mounting parts for BMW 1502-2002tii 2002 (1976)

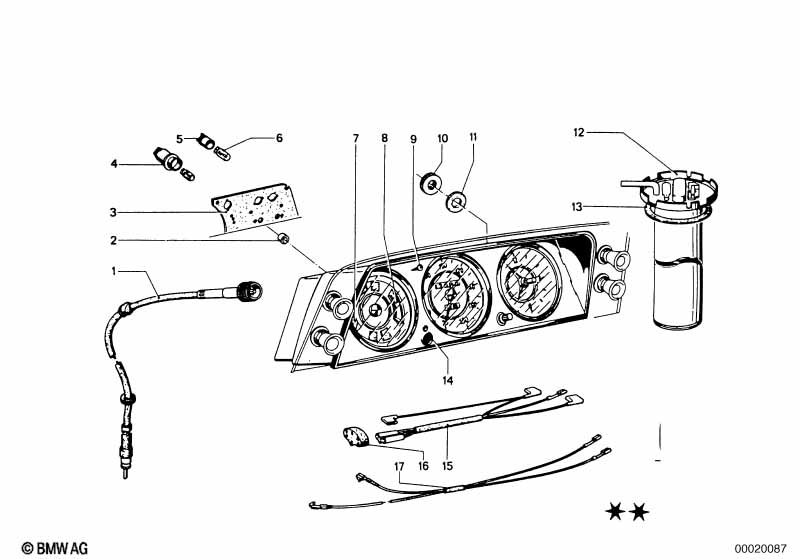

This Instruments/mounting parts technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Spacer sleeve | 2 | 62111359220 | $1.69 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bulb socket | 2 | 62148480114 | $3.11 | ENDED | Shop at ECS Tuning | ||||
| 05 | Bulb socket | 7 | 62111376716 | $3.94 | Shop at ECS Tuning | |||||
| 06 | Bulb | 8 | 62111350062 | $1.90 | ENDED | Shop at ECS Tuning | ||||
| 07 | Petrol gauge | 1 | 62111350085 | $498.87 | ENDED | Shop at ECS Tuning | ||||
| 08 | Temperature gauge | 1 | 62111350084 | $393.57 | ENDED | Shop at ECS Tuning | ||||
| 09 | Set fillister head self-tapping screw 20 | ST3,5X19 | 2 | 07509064376 | ENDED | Shop at ECS Tuning | ||||
| 10 | Knurled head nut | M5 | 2 | 62148480019 | $3.68 | Shop at ECS Tuning | ||||
| 11 | Rubber washer | 2 | 51185480151 | $0.57 | Shop at ECS Tuning | |||||
| 17 | Wiring set | 1 | 62111350120 | $35.42 | ENDED | Shop at ECS Tuning |
