Instruments/mounting parts for BMW 1502-2002tii 1602 (1973)

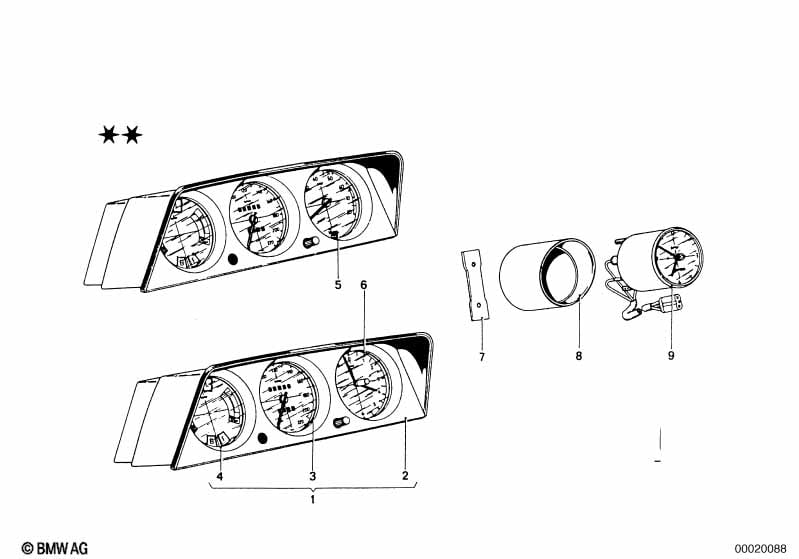

This Instruments/mounting parts technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Instrument cluster | 1 | 08/1973 | 07/1977 | 62111357642 | ENDED | Shop at ECS Tuning | |||
| 02 | Dashboard support | 1 | 08/1973 | 07/1977 | 62211357647 | ENDED | Shop at ECS Tuning | |||
| 03 | Speedometer | 1 | 08/1973 | 07/1977 | 62121357653 | $311.36 | ENDED | Shop at ECS Tuning | ||
| 04 | Temperature and fuel gauge | 1 | 08/1973 | 07/1977 | 62111357650 | $194.33 | ENDED | Shop at ECS Tuning | ||
| 05 | Revolution counter | 1 | 62131357652 | $284.05 | ENDED | Shop at ECS Tuning | ||||
| 06 | Clock | 1 | 08/1973 | 07/1977 | 62131357651 | $271.68 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 1602 Instruments/mounting parts?
- This technical diagram illustrates the Instruments/mounting parts within the Instruments, Measuring systems group for the 1502-2002tii 1602 produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Instrument cluster (Part #62111357642).
- Which models use the hardware listed in this Instruments/mounting parts?
- The hardware and components featured in the Instruments/mounting parts are specific to the 1502-2002tii 1602 produced during 1973. These technical specifications ensure that parts like the Instrument cluster (62111357642) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Instruments/mounting parts assembly?
- Each item in the Instruments/mounting parts corresponds to the numbered list below the illustration. For the 1502-2002tii 1602, you can identify the Instrument cluster by locating its position on the schematic, which then links to the official BMW part number 62111357642 for the Instruments, Measuring systems section.
