Speedo cable for BMW 1502-2002tii 1602 (1975)

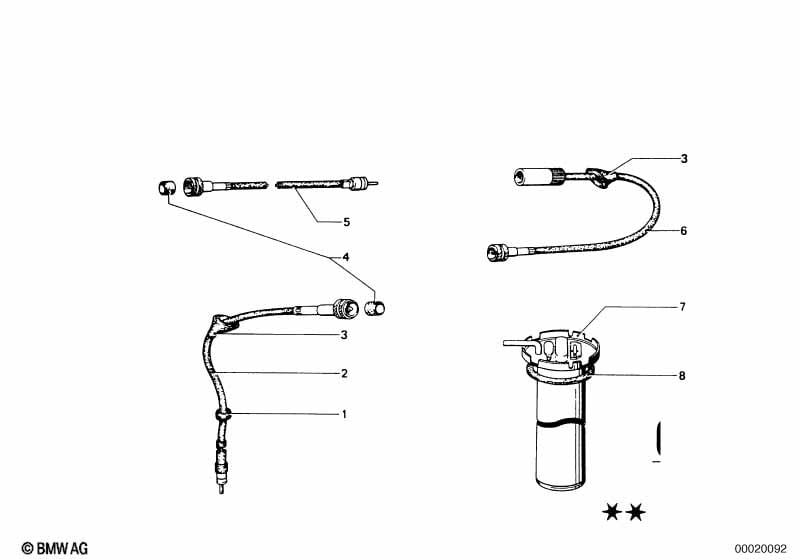

This Speedo cable technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rubber grommet | 1 | 21522072270 | $1.09 | Shop at ECS Tuning | |||||
| 02 | Drive Shaft | 1 | 03/1966 | 07/1977 | 62121350977 | $35.79 | +core | Shop at ECS Tuning | ||
| For vehicles with 5-gear transmission |
=Yes |
|||||||||
| 02 | Drive Shaft | 1 | 03/1966 | 07/1977 | 62121351720 | $76.59 | ENDED, +core | Shop at ECS Tuning | ||
| 03 | Rubber grommet | 1 | 62121359329 | ENDED | Shop at ECS Tuning | |||||
| 04 | Feltring | 1 | 62121354210 | $2.00 | Shop at ECS Tuning | |||||
| 07 | Sending unit | L=224,5 MM | 1 | 08/1973 | 07/1977 | 62161358087 | $374.27 | ENDED | Shop at ECS Tuning | |
| 08 | O-ring | D=58,8X4,2 | 1 | 16111744369 | $1.68 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 1602 Speedo cable?
- This technical diagram illustrates the Speedo cable within the Instruments, Measuring systems group for the 1502-2002tii 1602 produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Rubber grommet (Part #21522072270).
- Which models use the hardware listed in this Speedo cable?
- The hardware and components featured in the Speedo cable are specific to the 1502-2002tii 1602 produced during 1975. These technical specifications ensure that parts like the Rubber grommet (21522072270) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Speedo cable assembly?
- Each item in the Speedo cable corresponds to the numbered list below the illustration. For the 1502-2002tii 1602, you can identify the Rubber grommet by locating its position on the schematic, which then links to the official BMW part number 21522072270 for the Instruments, Measuring systems section.
