Instruments/mounting parts for BMW 1500-2000CS 2000ti (1968)

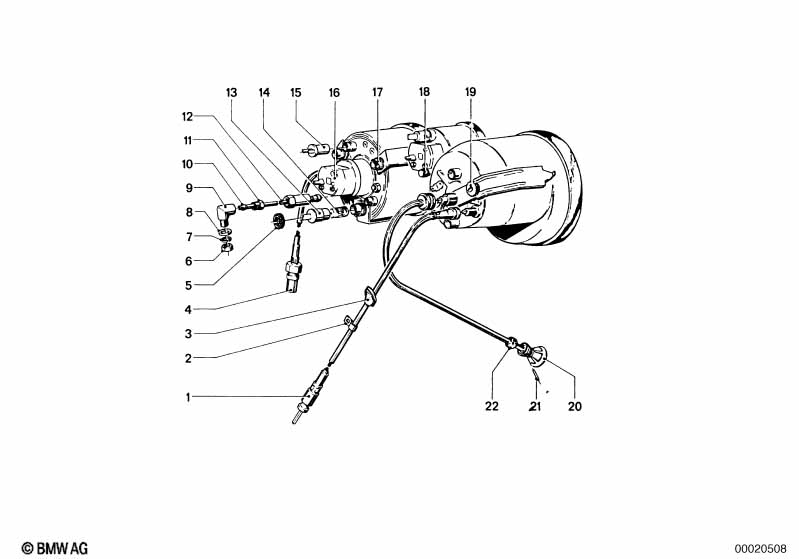

This Instruments/mounting parts technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Speedo cable | 1 | 04/1964 | 06/1968 | 62121352198 | $33.20 | Shop at ECS Tuning | |||
| 02 | Clamp | 1 | 62128570104 | ENDED | Shop at ECS Tuning | |||||
| 03 | Rubber grommet | 1 | 62121359329 | ENDED | Shop at ECS Tuning | |||||
| 04 | Connector | 1 | 11530588158 | ENDED | Shop at ECS Tuning | |||||
| 05 | Grommet | 10,5MM | 1 | 61218050550 | $0.35 | Shop at ECS Tuning | ||||
| 06 | Hex nut | M14X1,5 | 1 | 01/1964 | 12/1968 | 07119901309 | $1.65 | Shop at ECS Tuning | ||
| 07 | Spring washer | B14 | 1 | 01/1964 | 12/1968 | 07119933148 | $0.20 | Shop at ECS Tuning | ||
| 08 | Washer | A15 ZNS3 | 1 | 01/1964 | 12/1968 | 07119905829 | $0.74 | Shop at ECS Tuning | ||
| 09 | Connector | 14 X 1,5 | 1 | 01/1964 | 12/1968 | 07119972220 | ENDED | Shop at ECS Tuning | ||
| 11 | Screw | 1 | 01/1964 | 12/1968 | 07119970020 | ENDED | Shop at ECS Tuning | |||
| 14 | Bulb | 12V 2W | 9 | 01/1966 | 11/1968 | 07119978254 | $1.54 | Shop at ECS Tuning | ||
| 14 | Bulb | 12V 4W | 1 | 01/1966 | 11/1968 | 07509063576 | $1.58 | Shop at ECS Tuning | ||
| 18 | Nut | 2 | 62138680115 | ENDED | Shop at ECS Tuning | |||||
| 19 | Button | 5 | 62128680120 | $1.23 | Shop at ECS Tuning | |||||
| 20 | Button | 1 | 62128580176 | ENDED | Shop at ECS Tuning | |||||
| 22 | Gasket ring | A4X8-AL | 1 | 07119963003 | $0.38 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 2000ti Instruments/mounting parts?
- This technical diagram illustrates the Instruments/mounting parts within the Instruments, Measuring systems group for the 1500-2000CS 2000ti produced during 1968. It provides a detailed exploded view of the components, identifying key parts such as the Speedo cable (Part #62121352198).
- Which models use the hardware listed in this Instruments/mounting parts?
- The hardware and components featured in the Instruments/mounting parts are specific to the 1500-2000CS 2000ti produced during 1968. These technical specifications ensure that parts like the Speedo cable (62121352198) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Instruments/mounting parts assembly?
- Each item in the Instruments/mounting parts corresponds to the numbered list below the illustration. For the 1500-2000CS 2000ti, you can identify the Speedo cable by locating its position on the schematic, which then links to the official BMW part number 62121352198 for the Instruments, Measuring systems section.
