Instruments/mounting parts for BMW 1500-2000CS 2000tilux (1968)

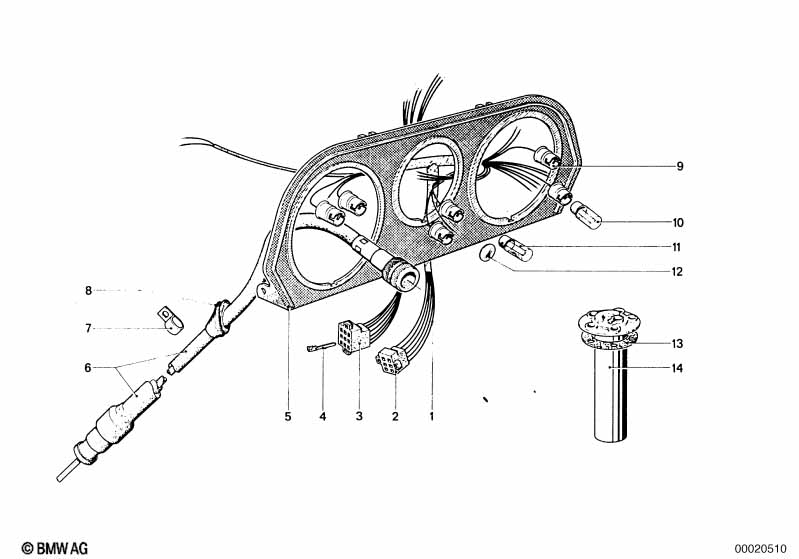

This Instruments/mounting parts technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000tilux. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 08 | Rubber grommet | 1 | 62121359329 | ENDED | Shop at ECS Tuning | |||||
| 09 | Bulb socket | 7 | 61131351086 | ENDED | Shop at ECS Tuning | |||||
| 10 | Bulb | 12V 2W | 7 | 07119978254 | $1.54 | Shop at ECS Tuning | ||||
| 10 | Bulb | 12V 4W | 1 | 07509063576 | $1.58 | Shop at ECS Tuning | ||||
| 13 | O-ring | D=58,8X4,2 | 1 | 16111744369 | $1.68 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 2000tilux Instruments/mounting parts?
- This technical diagram illustrates the Instruments/mounting parts within the Instruments, Measuring systems group for the 1500-2000CS 2000tilux produced during 1968. It provides a detailed exploded view of the components, identifying key parts such as the Rubber grommet (Part #62121359329).
- Which models use the hardware listed in this Instruments/mounting parts?
- The hardware and components featured in the Instruments/mounting parts are specific to the 1500-2000CS 2000tilux produced during 1968. These technical specifications ensure that parts like the Rubber grommet (62121359329) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Instruments/mounting parts assembly?
- Each item in the Instruments/mounting parts corresponds to the numbered list below the illustration. For the 1500-2000CS 2000tilux, you can identify the Rubber grommet by locating its position on the schematic, which then links to the official BMW part number 62121359329 for the Instruments, Measuring systems section.
