Instrument cluster for BMW 2500-3.3Li 3.0S (1973)

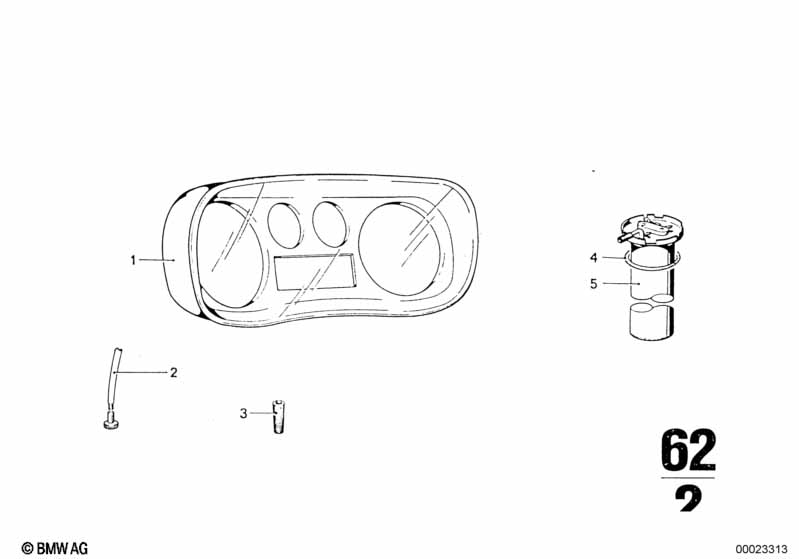

This Instrument cluster technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Dashboard support | 1 | 07/1969 | 02/1977 | 62111350606 | ENDED | Shop at ECS Tuning | |||
| 02 | Drive | 1 | 07/1969 | 02/1977 | 62121352263 | ENDED | Shop at ECS Tuning | |||
| 03 | Button | 1 | 07/1969 | 02/1977 | 62121355306 | $2.01 | ENDED | Shop at ECS Tuning | ||
| 04 | O-ring | D=58,8X4,2 | 1 | 16111744369 | $1.68 | Shop at ECS Tuning | ||||
| 05 | Sending unit assy metal tank | L=224 MM | 1 | 09/1973 | 02/1977 | 62161354264 | $342.70 | Shop at ECS Tuning | ||
| 05 | Sending unit assy metal tank | L=248 MM | 1 | 09/1973 | 02/1977 | 62161357299 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0S Instrument cluster?
- This technical diagram illustrates the Instrument cluster within the Instruments, Measuring systems group for the 2500-3.3Li 3.0S produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Dashboard support (Part #62111350606).
- Which models use the hardware listed in this Instrument cluster?
- The hardware and components featured in the Instrument cluster are specific to the 2500-3.3Li 3.0S produced during 1973. These technical specifications ensure that parts like the Dashboard support (62111350606) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Instrument cluster assembly?
- Each item in the Instrument cluster corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0S, you can identify the Dashboard support by locating its position on the schematic, which then links to the official BMW part number 62111350606 for the Instruments, Measuring systems section.
