Instruments combinat-.single components for BMW 2500-3.3Li 3.3Li (1977)

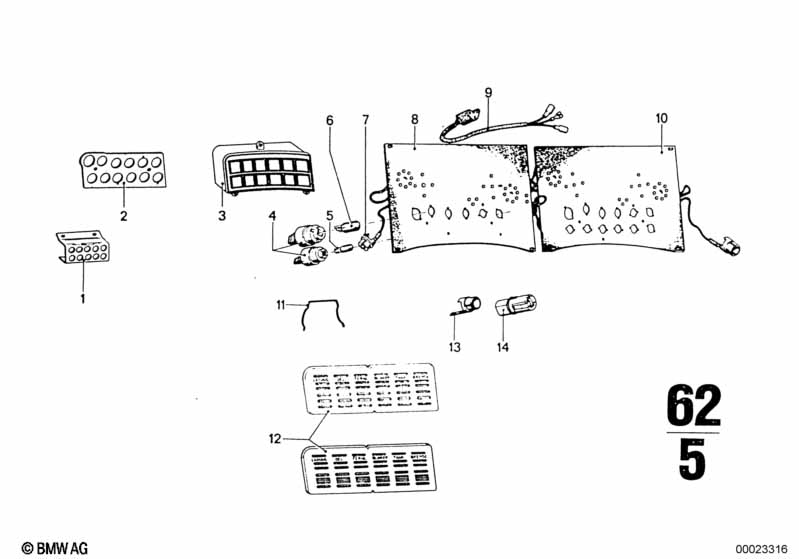

This Instruments combinat-.single components technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Gasket | 1 | 62111354107 | ENDED | Shop at ECS Tuning | |||||
| 03 | Guide | 1 | 62111354108 | ENDED | Shop at ECS Tuning | |||||
| 04 | Bulb socket | X | 62111350607 | $4.80 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bulb socket | 1 | 62111376716 | $3.94 | Shop at ECS Tuning | |||||
| 05 | Bulb | W3W | 5 | 07119905358 | $1.96 | Shop at ECS Tuning | ||||
| 06 | Bulb | 12V 1,2W | X | 63217167000 | $3.00 | Shop at ECS Tuning | ||||
| 07 | Bulb socket | 4 | 61131352728 | ENDED | Shop at ECS Tuning | |||||
| 09 | Cable revolution counter | 1 | 62111350633 | ENDED | Shop at ECS Tuning | |||||
| 11 | Clip | X | 62111354106 | ENDED | Shop at ECS Tuning | |||||
| 13 | Bulb socket | 1 | 62111358381 | ENDED | Shop at ECS Tuning | |||||
| 14 | Bulb socket | 2 | 62131365240 | $1.64 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
