Instrument cluster for BMW 3 Series E46 325Ci (2003)

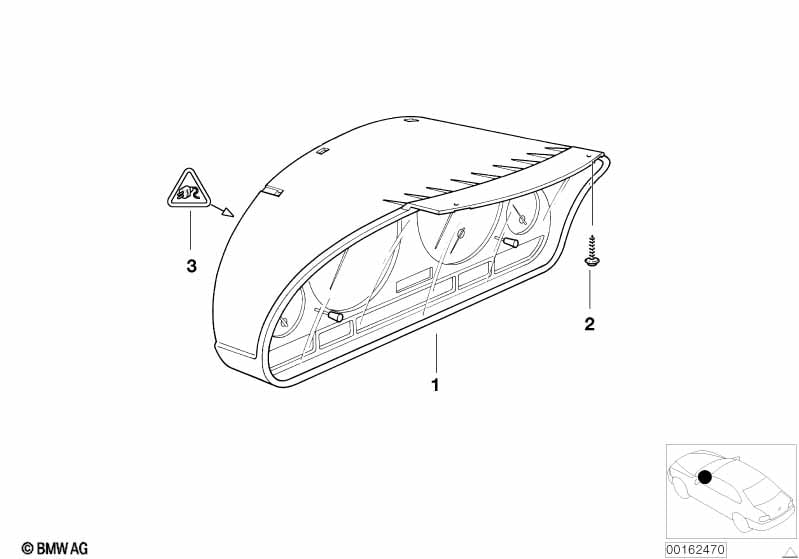

This Instrument cluster technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Automatic transmission |
S205A=No |
|||||||||
| 01 | Instruments combination uncoded | MPH | 1 | 62116985675 | $765.12 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission or Sequential manual transmission (SMG) |
S205A=Yes S206A=Yes |
|||||||||
| 01 | Instruments combination uncoded | MPH | 1 | 62116985676 | $765.12 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Canada and Manual Transmission |
L838A=Yes =Yes |
|||||||||
| 01 | Instruments combination uncoded | KM/H | 1 | 62116985667 | Shop at ECS Tuning | |||||
| For vehicles with National version Canada and Automatic transmission and Sequential manual transmission (SMG) |
L838A=Yes S205A=Yes S206A=No |
|||||||||
| 01 | Instruments combination uncoded | KM/H | 1 | 62116985668 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Canada and Automatic transmission and Sequential manual transmission (SMG) |
L838A=Yes S205A=No S206A=Yes |
|||||||||
| 01 | Instruments combination uncoded | KM/H | 1 | 62116985668 | ENDED | Shop at ECS Tuning | ||||
| 02 | Fillister head self-tapping screw | ST4,2X17 | 2 | 07146977362 | $1.09 | Shop at ECS Tuning | ||||
| 03 | Rep. kit for socket housing | 26 POL. | 1 | 61132471242 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
| -- | Universal socket housing uncoded | 26 POL. | 1 | 61136913626 | $1.05 | Shop at ECS Tuning | ||||
| 03 | Rep. kit for socket housing | 18 POL. | 1 | 61132471241 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
| -- | Universal socket housing uncoded | 18 POL. | 1 | 61138364666 | $0.68 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
