Instrument cluster for BMW 5 Series E61 LCI 525d (2010)

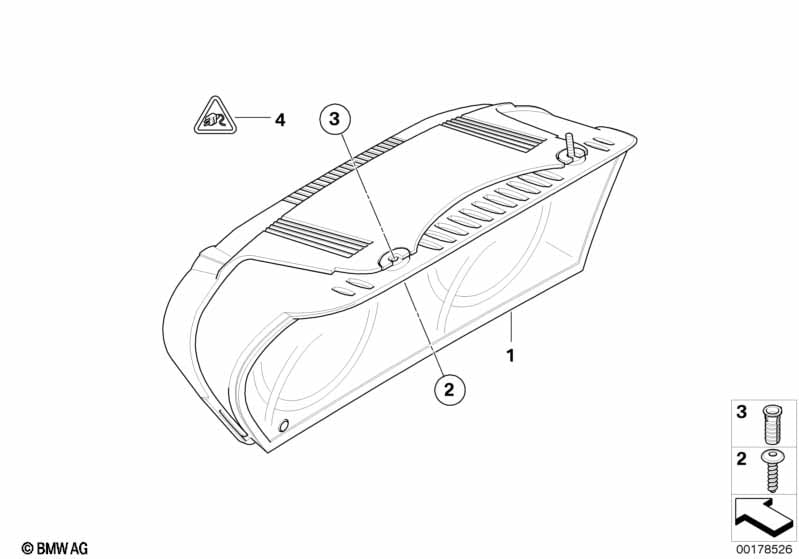

This Instrument cluster technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Instruments combination uncoded | MPH | 1 | 03/2007 | 62109194890 | Shop at ECS Tuning | ||||
| 01 | Instruments combination uncoded | KM/H | 1 | 03/2005 | 62109194889 | ENDED | Shop at ECS Tuning | |||
| 02 | Screw | 2 | 62118375035 | $0.28 | Shop at ECS Tuning | |||||
| 03 | Pin | 2 | 51458191328 | Shop at ECS Tuning | ||||||
| 04 | Pin terminal | 18 POL. SCHWARZ | 1 | 61138364645 | $1.30 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Covering cap | 1 | 61138364655 | $1.15 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
