Instrument cluster for BMW 1 Series E88 128i (2013)

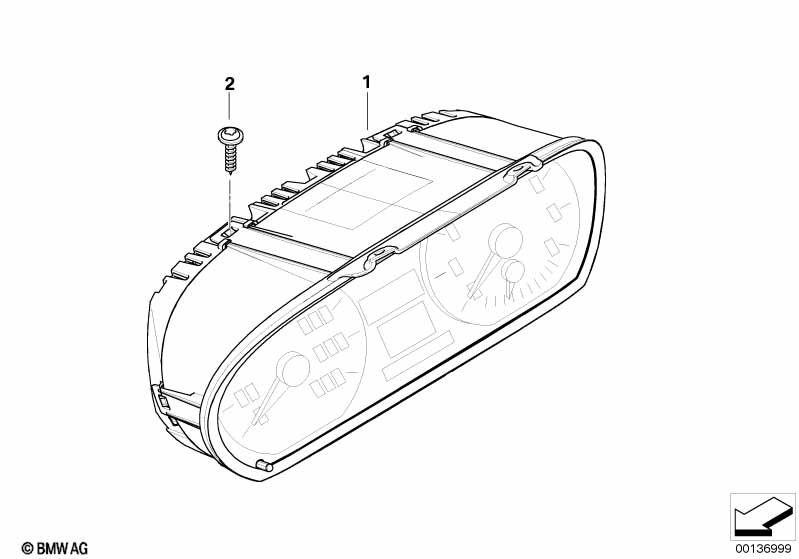

This Instrument cluster technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 128i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Instruments combination uncoded | MPH | 1 | 62109283797 | Shop at ECS Tuning | |||||
| For vehicles with National version Canada |
L838A=Yes |
|||||||||
| 01 | Instruments combination uncoded | KM/H | 1 | 62109283795 | Shop at ECS Tuning | |||||
| 02 | Fillister head self-tapping screw | 2 | 07147133553 | $0.16 | Shop at ECS Tuning | |||||
