Instruments combinat-.single components for BMW 7 Series E32 730i (1994)

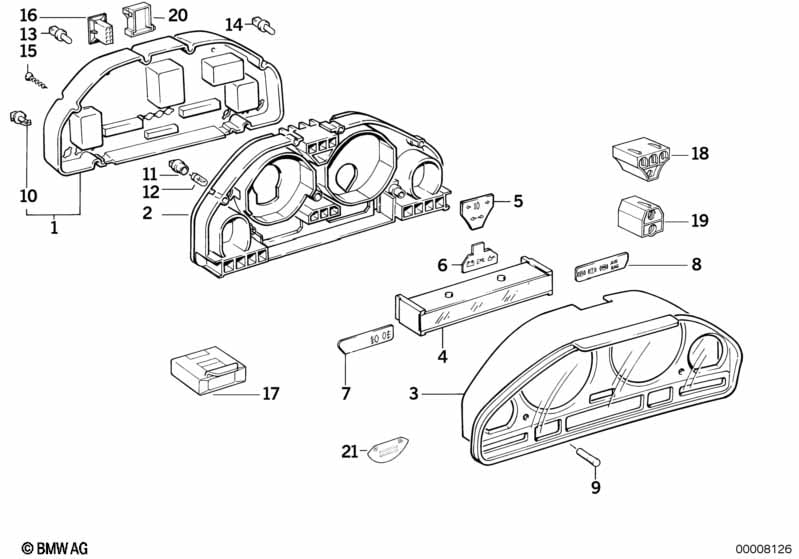

This Instruments combinat-.single components technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Printed circuit board | 1 | 09/1990 | 62118363173 | $1105.75 | ENDED | Shop at ECS Tuning | |||
| 02 | Dashboard support | 1 | 09/1990 | 62118355060 | $141.77 | Shop at ECS Tuning | ||||
| 03 | Frame front | 1 | 02/1989 | 62111388804 | $296.62 | Shop at ECS Tuning | ||||
| 04 | LCD-Module | 1 | 02/1989 | 62111388799 | $1172.73 | Shop at ECS Tuning | ||||
| 05 | Control symbol | 1 | 62111378586 | $6.57 | Shop at ECS Tuning | |||||
| 06 | Control symbol | 1 | 09/1991 | 62118356039 | $6.57 | ENDED | Shop at ECS Tuning | |||
| 07 | Control symbol light left | 1 | 09/1990 | 62118350528 | $6.57 | Shop at ECS Tuning | ||||
| For vehicles with Saudi Arabia version |
=Yes |
|||||||||
| 07 | Control symbol light left | 1 | 09/1990 | 62118350548 | ENDED | Shop at ECS Tuning | ||||
| 08 | Control symbol light right | 1 | 62111378583 | $6.57 | ENDED | Shop at ECS Tuning | ||||
| 09 | Button | 2 | 62111378568 | $8.58 | Shop at ECS Tuning | |||||
| 10 | Rotary knob | 2 | 63211376879 | $0.65 | ENDED | Shop at ECS Tuning | ||||
| 11 | Bulb socket | 3 | 62111376716 | $3.94 | Shop at ECS Tuning | |||||
| 12 | Bulb | W3W | 3 | 07119905358 | $1.96 | Shop at ECS Tuning | ||||
| 13 | Bulb | 12V 1,2W | X | 02/1989 | 62131383311 | $3.00 | Shop at ECS Tuning | |||
| 14 | Bulb | 12V 1,5W | 6 | 02/1989 | 62111391260 | $3.00 | ENDED | Shop at ECS Tuning | ||
| 15 | Fillister head self-tapping screw | ST3,5X16 | 7 | 07119905240 | Shop at ECS Tuning | |||||
| 16 | Coding plug (code) | 1 | 09/1990 | 62118350348 | $219.08 | ENDED | Shop at ECS Tuning | |||
| ORDERING OF CODED CODING PLUG ONLY WITH INDICATION OF CODE |
||||||||||
| 20 | Cover | 1 | 02/1989 | 62111388805 | $6.17 | Shop at ECS Tuning | ||||
