Head-up display for BMW 2 Series F45 Active Tourer LCI 218d (2021)

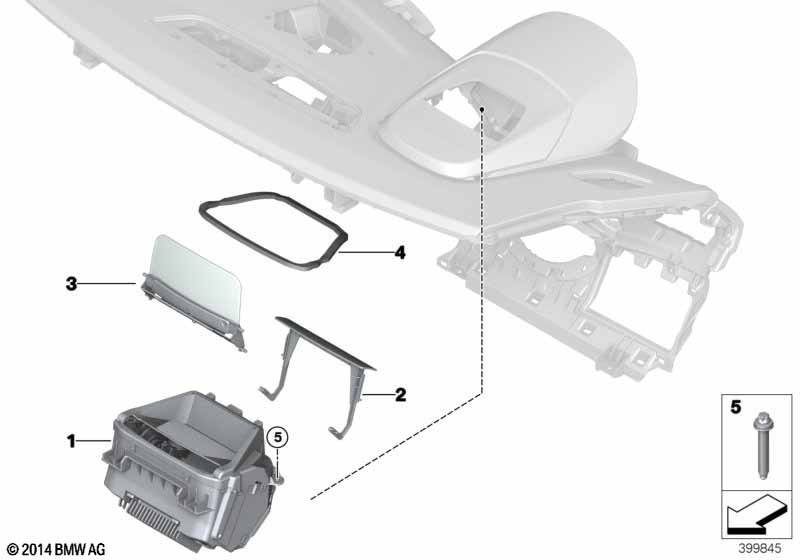

This Head-up display technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer LCI 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Head-up display |
S610A=Yes |
||||||||
| 01 | Head-up display | 1 | 62309825224 | Shop at ECS Tuning | ||||||
| 02 | Service hatch for head-up display | 1 | 62309286415 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Sound insulation | 1 | 62309381841 | Shop at ECS Tuning | ||||||
| 03 | Head-up display | 1 | 62309381842 | Shop at ECS Tuning | ||||||
| 04 | Sound insulation | 1 | 62309381841 | Shop at ECS Tuning | ||||||
