Instrument cluster for BMW MINI Cabrio F57 JCW (2018)

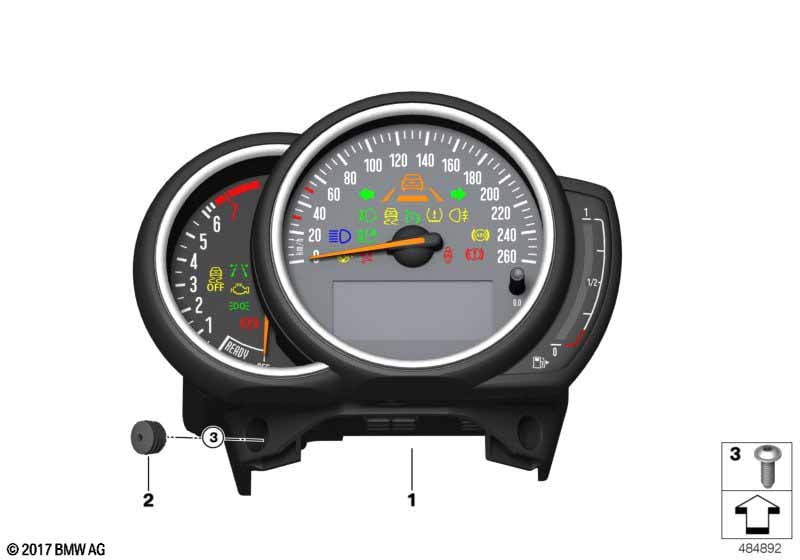

This Instrument cluster technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Kilometer-calibrated speedometer and MINI Head-Up display |
S548A=No S6ADA=No |
|||||||||
| 01 | Instrument cluster | MPH | 1 | 07/2017 | 03/2020 | 62108779683 | ENDED | Shop at ECS Tuning | ||
| 01 | Instrument cluster | MPH | 1 | 07/2017 | 03/2020 | 62105A1C406 | Shop at ECS Tuning | |||
| 01 | Instrumentenkombination | MPH | 1 | 07/2017 | 03/2020 | 62105A5C604 | Shop at ECS Tuning | |||
| For vehicles with National version japan and Kilometer-calibrated speedometer and MINI Head-Up display and Language version Japanese and Language version, Chinese simpl. and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=No S548A=Yes S6ADA=No S852A=No S866A=No S8LHA=No |
|||||||||
| 01 | Instrument cluster | KMH | 1 | 07/2017 | 03/2020 | 62105A1C405 | Shop at ECS Tuning | |||
| For vehicles with National version japan and Kilometer-calibrated speedometer and MINI Head-Up display and Language version Japanese and Language version, Chinese simpl. and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=Yes S548A=Yes S6ADA=No S852A=Yes S866A=Yes S8LHA=Yes |
|||||||||
| 01 | Instrument cluster | KMH | 1 | 07/2017 | 03/2020 | 62105A1C408 | Shop at ECS Tuning | |||
| 02 | Covering cap | 2 | 07/2017 | 03/2020 | 62109327018 | Shop at ECS Tuning | ||||
| 03 | Sheet metal screw | ST4,2X16 | 2 | 07/2017 | 03/2020 | 07119907274 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Cabrio F57 JCW Instrument cluster?
- This technical diagram illustrates the Instrument cluster within the Instruments, Measuring systems group for the MINI Cabrio F57 JCW produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the Instrument cluster (Part #62108779683).
- Which models use the hardware listed in this Instrument cluster?
- The hardware and components featured in the Instrument cluster are specific to the MINI Cabrio F57 JCW produced during 2018. These technical specifications ensure that parts like the Instrument cluster (62108779683) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Instrument cluster assembly?
- Each item in the Instrument cluster corresponds to the numbered list below the illustration. For the MINI Cabrio F57 JCW, you can identify the Instrument cluster by locating its position on the schematic, which then links to the official BMW part number 62108779683 for the Instruments, Measuring systems section.
