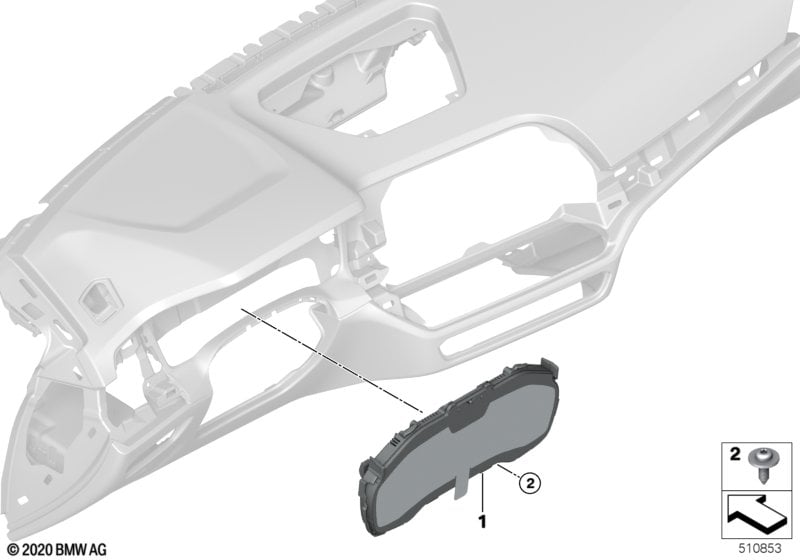

Instrument cluster, high for BMW 3 Series G20 Sedan 320i (2019)
This Instrument cluster, high technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with BMW Live dashboard Professional or Multifunctional instrument display |
S6U3A=Yes S6WBA=Yes |
||||||||
| 01 | Instrumentenkombination | 12,3" | 1 | 11/2023 | 62105B35D79 | ENDED | Shop at ECS Tuning | |||
| 01 | Instrument cluster | 12,3" | 1 | 62105B4A589 | Shop at ECS Tuning | |||||
| 02 | Combi. fillister head self-tapping screw | 2 | 07149323312 | NoS | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan 320i Instrument cluster, high?
- This technical diagram illustrates the Instrument cluster, high within the Instruments, Measuring systems group for the 3 Series G20 Sedan 320i produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Instrumentenkombination (Part #62105B35D79).
- Which models use the hardware listed in this Instrument cluster, high?
- The hardware and components featured in the Instrument cluster, high are specific to the 3 Series G20 Sedan 320i produced during 2019. These technical specifications ensure that parts like the Instrumentenkombination (62105B35D79) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Instrument cluster, high assembly?
- Each item in the Instrument cluster, high corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan 320i, you can identify the Instrumentenkombination by locating its position on the schematic, which then links to the official BMW part number 62105B35D79 for the Instruments, Measuring systems section.
