I-cluster MID w/o HUD for BMW 3 Series G20 Sedan 320iX (2020)

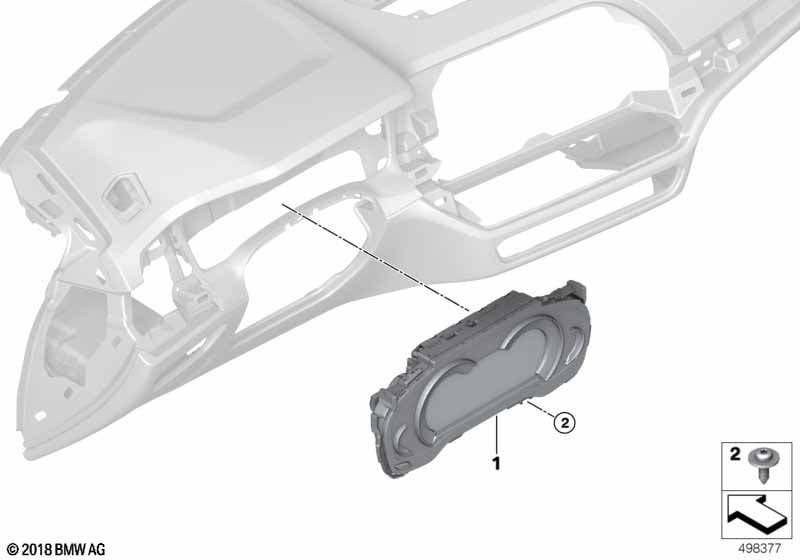

This I-cluster MID w/o HUD technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 320iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Head-up display |
S610A=No |
||||||||
| For vehicles with Kilometer-calibrated speedometer and Active cruise control+Stop&Go function and TV function and Head-up display and BMW Live dashboard Professional |
S548A=No S5DFA=Yes S601A=No S610A=No S6U3A=No |
|||||||||
| 01 | Instrument cluster | MPH | 1 | 62105A59652 | Shop at ECS Tuning | |||||
| For vehicles with Kilometer-calibrated speedometer and Active cruise control+Stop&Go function and TV function and Head-up display and BMW Live dashboard Professional |
S548A=Yes S5DFA=Yes S601A=No S610A=No S6U3A=No |
|||||||||
| 01 | Instrument cluster | KM/H | 1 | 07/2021 | 62105A2A2F8 | ENDED | Shop at ECS Tuning | |||
| 01 | Instrument cluster | KM/H | 1 | 62105A59648 | Shop at ECS Tuning | |||||
| 02 | Combi. fillister head self-tapping screw | 2 | 07149323312 | NoS | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
