Instrument cluster, base for BMW 2 Series F44 Gran Coupé 220iX (2020)

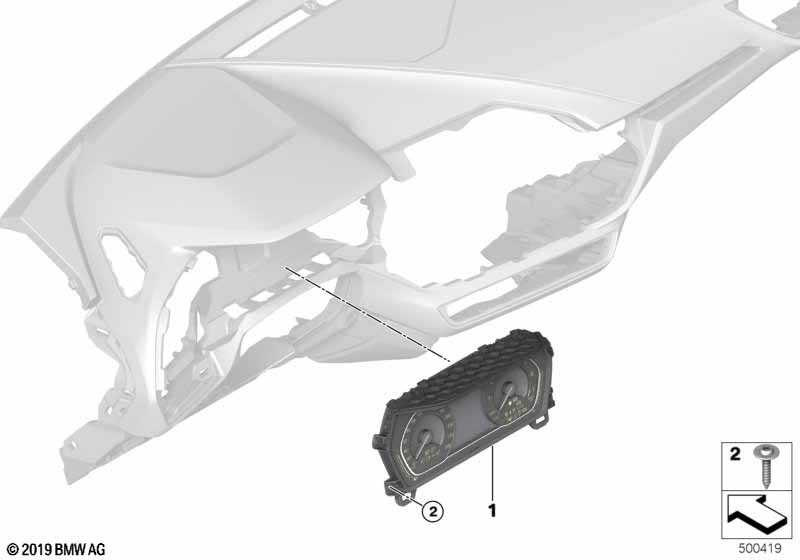

This Instrument cluster, base technical drawing provides a detailed breakdown of the assembly for the 2 Series F44 Gran Coupé 220iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention! For prod. date 06/2020 and works integration level 07/2020: Perform ISTA TEST to determine the correct part number. If the part number cannot be determined, please contact technical support for parts.(TSARA) |
|||||||||
| For vehicles with Kilometer-calibrated speedometer and Head-up display and BMW Live dashboard Professional and Multifunctional instrument display |
S548A=Yes S610A=Yes S6U3A=No S6WBA=No |
|||||||||
| 01 | Instrumentenkombination | KM/H | 1 | 62105A69521 | Shop at ECS Tuning | |||||
| For vehicles with Kilometer-calibrated speedometer and Head-up display and BMW Live dashboard Professional and Multifunctional instrument display |
S548A=No S610A=Yes S6U3A=No S6WBA=No |
|||||||||
| 01 | Instrumentenkombination | MPH | 1 | 62105A69527 | Shop at ECS Tuning | |||||
| 02 | Oval-head screw with washer | DELTA PT4X20 | 4 | 07/2022 | 07149185673 | Shop at ECS Tuning | ||||
