Instrument cluster, base for BMW 4 Series G26 Gran Coupé 420i (2024)

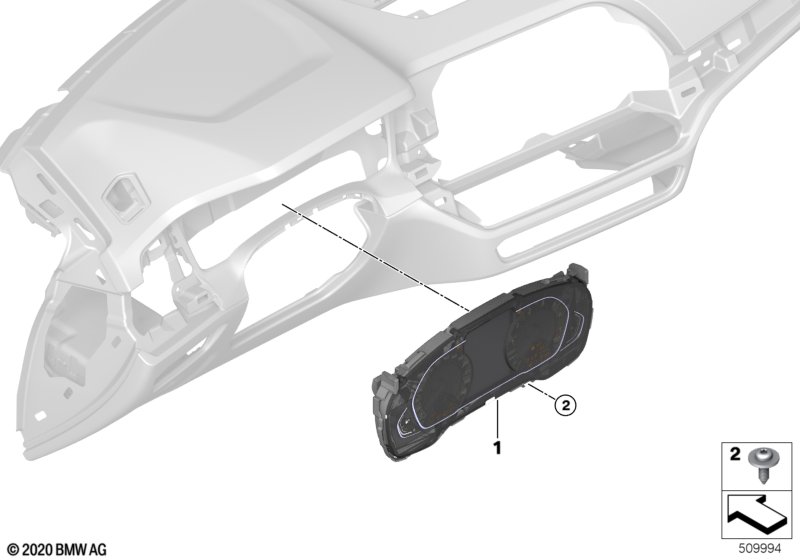

This Instrument cluster, base technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé 420i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Head-up display |
S610A=Yes |
||||||||
| For vehicles with BMW Live dashboard Professional and Multifunctional instrument display |
S6U3A=No S6WBA=No |
|||||||||
| 01 | Instrumentenkombination | KMH | 1 | 07/2020 | 62105A69549 | Shop at ECS Tuning | ||||
| For vehicles with Kilometer-calibrated speedometer and BMW Live dashboard Professional and Multifunctional instrument display |
S548A=No S6U3A=No S6WBA=No |
|||||||||
| 01 | Instrumentenkombination | MPH | 1 | 07/2020 | 62105A69565 | Shop at ECS Tuning | ||||
| 02 | Combi. fillister head self-tapping screw | 2 | 07149323312 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G26 Gran Coupé 420i Instrument cluster, base?
- This technical diagram illustrates the Instrument cluster, base within the Instruments, Measuring systems group for the 4 Series G26 Gran Coupé 420i produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Instrumentenkombination (Part #62105A69549).
- Which models use the hardware listed in this Instrument cluster, base?
- The hardware and components featured in the Instrument cluster, base are specific to the 4 Series G26 Gran Coupé 420i produced during 2024. These technical specifications ensure that parts like the Instrumentenkombination (62105A69549) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Instrument cluster, base assembly?
- Each item in the Instrument cluster, base corresponds to the numbered list below the illustration. For the 4 Series G26 Gran Coupé 420i, you can identify the Instrumentenkombination by locating its position on the schematic, which then links to the official BMW part number 62105A69549 for the Instruments, Measuring systems section.
