Head-up display for BMW MINI Cabrio F67 JCW (2025)

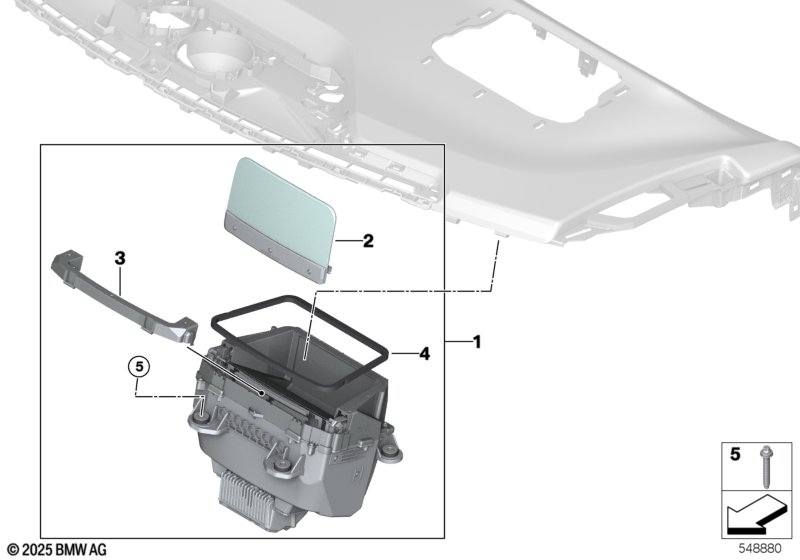

This Head-up display technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F67 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with MINI Head-Up display |
S6ADA=Yes |
||||||||
| 01 | Head-up display | 1 | 62305A7B456 | Shop at ECS Tuning | ||||||
| 02 | Head-up display | 1 | 62305A26D97 | Shop at ECS Tuning | ||||||
| 03 | Service hatch for head-up display | 1 | 62305A26D95 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Sound insulation | 1 | 62305A26D96 | Shop at ECS Tuning | ||||||
| 04 | Sound insulation | 1 | 62305A26D96 | Shop at ECS Tuning | ||||||
| 05 | Star-socket screw | 5X30-10.9 | 4 | 13538661716 | Shop at ECS Tuning | |||||
