Headlight for BMW 3 Series E21 316 (1982)

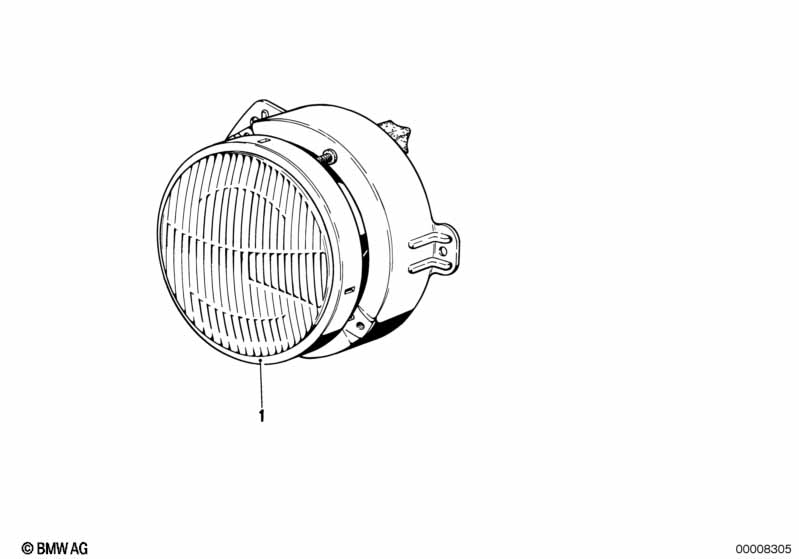

This Headlight technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 316. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Headlight left | H4 | 1 | 63121362675 | $281.26 | ENDED | Shop at ECS Tuning | |||
| 01 | Headlight right | H4 | 1 | 63121362676 | $281.26 | Shop at ECS Tuning | ||||
| 01 | Headlight left | 1 | 63121362677 | Shop at ECS Tuning | ||||||
| 01 | Headlight right | 1 | 63121362678 | $154.01 | Shop at ECS Tuning | |||||
| For vehicles with Headlight cleaning system |
=Yes |
|||||||||
| 01 | Headlight left | H4 | 1 | 63121362845 | ENDED | Shop at ECS Tuning | ||||
| 01 | Headlight right | H4 | 1 | 63121362846 | ENDED | Shop at ECS Tuning | ||||
| 01 | Headlight left | 1 | 63121362847 | $129.46 | ENDED | Shop at ECS Tuning | ||||
| 01 | Headlight right | 1 | 63121362848 | $161.82 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
