Headlight for BMW 6 Series E24 635CSi (1989)

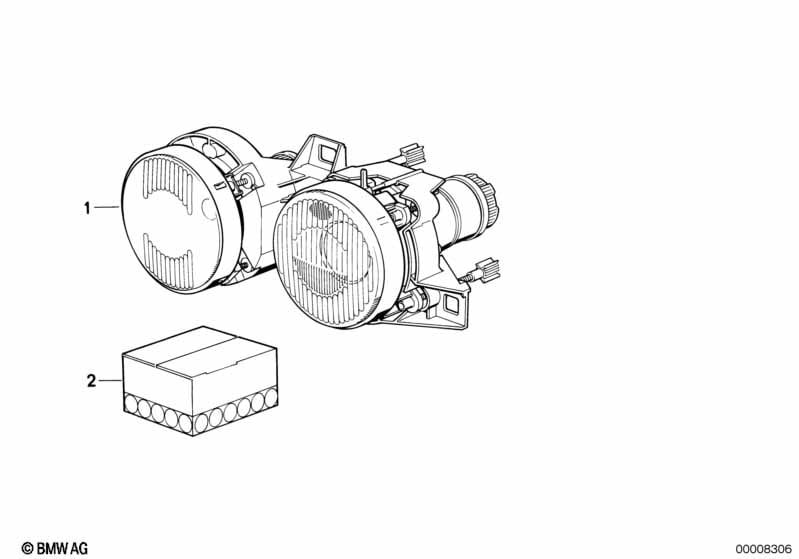

This Headlight technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Twin headlight left | 1 | 09/1988 | 63121386777 | ENDED | Shop at ECS Tuning | ||||
| 01 | Twin headlight left | 1 | 09/1988 | 63121386777 | ENDED | Shop at ECS Tuning | ||||
| 01 | Twin headlight right | 1 | 09/1988 | 63121386778 | ENDED | Shop at ECS Tuning | ||||
| 01 | Twin headlight right | 1 | 09/1988 | 63121386778 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version france |
L813A=Yes |
|||||||||
| 01 | Left yellow twin headlight | 1 | 09/1988 | 63121386781 | ENDED | Shop at ECS Tuning | ||||
| 01 | Left yellow twin headlight | 1 | 09/1988 | 63121386781 | ENDED | Shop at ECS Tuning | ||||
| 01 | Right yellow twin headlight | 1 | 09/1988 | 63121386782 | ENDED | Shop at ECS Tuning | ||||
| 01 | Right yellow twin headlight | 1 | 09/1988 | 63121386782 | ENDED | Shop at ECS Tuning | ||||
| 01 | Twin headlight adjustable left | 1 | 09/1988 | 63121386791 | ENDED | Shop at ECS Tuning | ||||
| 01 | Twin headlight adjustable left | 1 | 09/1988 | 63121386791 | ENDED | Shop at ECS Tuning | ||||
| 01 | Twin headlight adjustable right | GELB | 1 | 09/1988 | 63121386792 | ENDED | Shop at ECS Tuning | |||
| 01 | Twin headlight adjustable right | GELB | 1 | 09/1988 | 63121386792 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
