Headlight for BMW 7 Series E23 735i (1989)

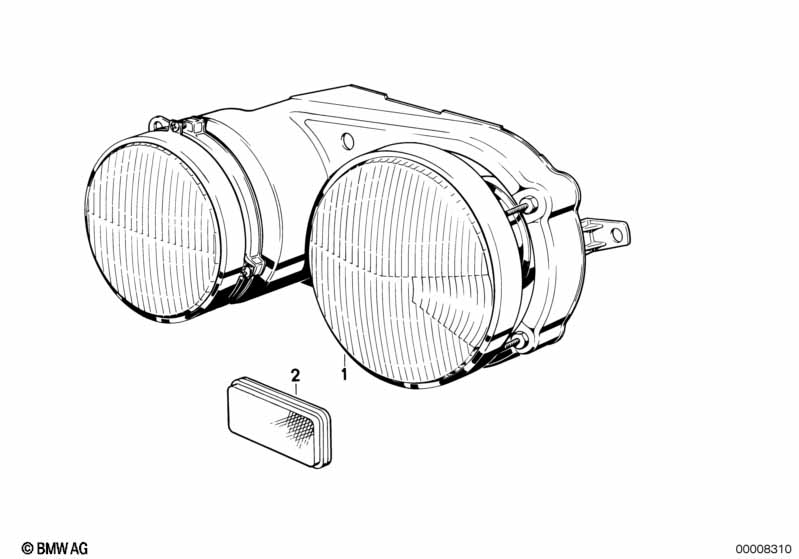

This Headlight technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Twin headlight left | 1 | 63123905485 | Shop at ECS Tuning | ||||||
| 01 | Twin headlight right | 1 | 63123905486 | Shop at ECS Tuning | ||||||
| For vehicles with Headlight aim control |
=Yes |
|||||||||
| 01 | Twin headlight adjustable left | 1 | 04/1983 | 63123909793 | Shop at ECS Tuning | |||||
| 01 | Twin headlight adjustable right | 1 | 04/1983 | 63123909794 | Shop at ECS Tuning | |||||
| 02 | Front white reflector | 2 | 04/1983 | 63133908222 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 735i Headlight?
- This technical diagram illustrates the Headlight within the Lighting group for the 7 Series E23 735i produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Twin headlight left (Part #63123905485).
- Which models use the hardware listed in this Headlight?
- The hardware and components featured in the Headlight are specific to the 7 Series E23 735i produced during 1989. These technical specifications ensure that parts like the Twin headlight left (63123905485) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Headlight assembly?
- Each item in the Headlight corresponds to the numbered list below the illustration. For the 7 Series E23 735i, you can identify the Twin headlight left by locating its position on the schematic, which then links to the official BMW part number 63123905485 for the Lighting section.
