Single components for headlight for BMW 3 Series E21 320i (1977)

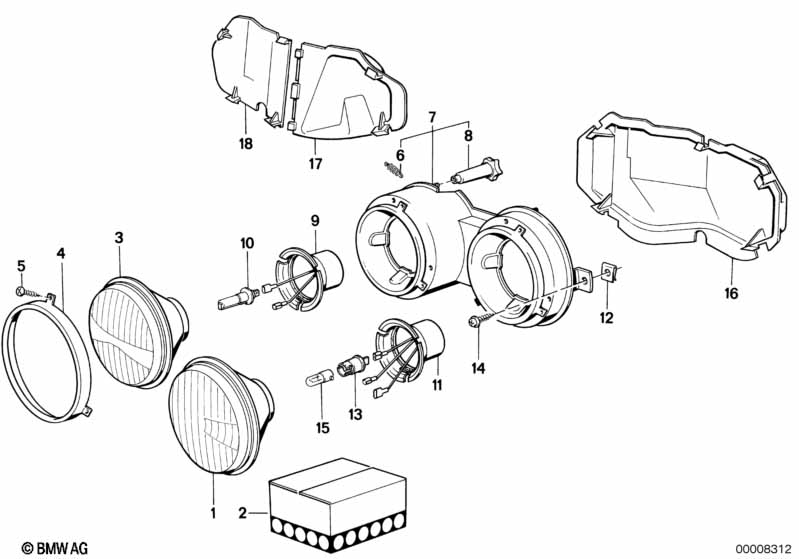

This Single components for headlight technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Low beam insert | 2 | 63121356415 | $64.67 | ENDED | Shop at ECS Tuning | ||||
| 01 | Low beam stage reflector insert | 2 | 63121371330 | Shop at ECS Tuning | ||||||
| For vehicles with National version france |
L813A=Yes |
|||||||||
| 01 | Low beam insert yellow | 2 | 63121356421 | $33.61 | Shop at ECS Tuning | |||||
| 01 | Low beam stage reflector insert yellow | 2 | 63121371331 | Shop at ECS Tuning | ||||||
| 02 | Set low beam stage reflector insert | 1 | 63129057887 | ENDED | Shop at ECS Tuning | |||||
| 03 | High beam insert | HELLA | 2 | 63121356409 | $79.27 | Shop at ECS Tuning | ||||
| For vehicles with National version france |
L813A=Yes |
|||||||||
| 03 | High beam insert yellow | 2 | 63121356419 | $57.28 | Shop at ECS Tuning | |||||
| 04 | Glass holding frame | 4 | 63121362477 | $32.43 | Shop at ECS Tuning | |||||
| For vehicles with Headlight cleaning system |
=Yes |
|||||||||
| 04 | Glass holding frame left | 2 | 63121362833 | $46.87 | Shop at ECS Tuning | |||||
| 04 | Glass holding frame right | 2 | 63121362834 | $46.87 | ENDED | Shop at ECS Tuning | ||||
| 05 | Fillister head self-tapping screw | B3,9X8 | X | 63121359777 | $0.42 | Shop at ECS Tuning | ||||
| 06 | Tension spring | 4 | 63121359719 | $2.68 | Shop at ECS Tuning | |||||
| 07 | Supporting frame left | 1 | 63121359657 | $181.63 | Shop at ECS Tuning | |||||
| 07 | Supporting frame right | 1 | 63121359658 | $181.63 | ENDED | Shop at ECS Tuning | ||||
| 08 | Adjusting nut | 8 | 63121360689 | $2.57 | Shop at ECS Tuning | |||||
| 09 | Covering cap | HELLA | 2 | 63121372732 | $26.55 | ENDED | Shop at ECS Tuning | |||
| 10 | Bulb | 12V 55W H1 | X | 63217160777 | $11.68 | Shop at ECS Tuning | ||||
| 11 | Covering cap | HELLA | 2 | 63121373321 | $26.55 | Shop at ECS Tuning | ||||
| 12 | Body nut | ST6,3-1-ZNS3 | 6 | 07129904231 | Shop at ECS Tuning | |||||
| 13 | Bulb socket | 2 | 62148680130 | $3.25 | Shop at ECS Tuning | |||||
| 14 | Sheet metal screw | 6 | 63121352070 | $0.62 | Shop at ECS Tuning | |||||
| 15 | Bulb | 12V 4W | X | 07509063576 | $1.58 | Shop at ECS Tuning | ||||
| 16 | Covering right | 1 | 08/1977 | 51712458933 | ENDED | Shop at ECS Tuning | ||||
| 16 | Covering left | 1 | 51711835363 | $18.16 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Headlight cleaning system |
=Yes |
|||||||||
| 16 | Covering right | 1 | 08/1977 | 51711849458 | ENDED | Shop at ECS Tuning | ||||
| 16 | Covering left | 1 | 02/1981 | 51711849457 | ENDED | Shop at ECS Tuning | ||||
