Headlight aim control for BMW 7 Series E23 733i (1982)

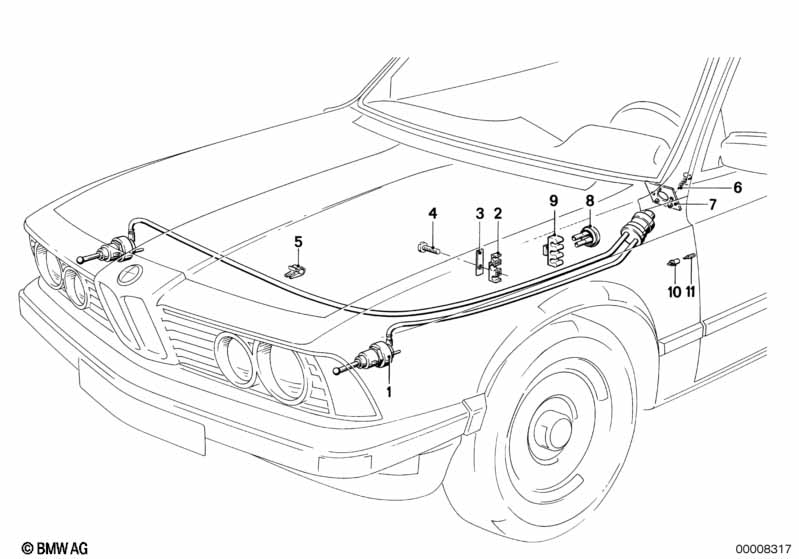

This Headlight aim control technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Headlight aim control | 1 | 09/1982 | 63121367280 | $149.54 | Shop at ECS Tuning | ||||
| 02 | Clamp | 3 | 63121364429 | ENDED | Shop at ECS Tuning | |||||
| 03 | Supporting plate | 3 | 63121364430 | ENDED | Shop at ECS Tuning | |||||
| 04 | Self tapping screw | 3 | 34321119239 | $0.27 | Shop at ECS Tuning | |||||
| 05 | Cable clamp | D=6MM | 8 | 63121364431 | $0.93 | Shop at ECS Tuning | ||||
| 06 | Recessed oval head sheet-metal screw | ST4,8X19 | 2 | 07119902483 | $1.64 | Shop at ECS Tuning | ||||
| 07 | Plate | 1 | 63121367024 | $14.73 | Shop at ECS Tuning | |||||
| 09 | Holder | 1 | 12121353672 | $2.54 | Shop at ECS Tuning | |||||
| 10 | Bulb socket | 2 | 64111366170 | $2.37 | Shop at ECS Tuning | |||||
| 11 | Bulb | 12V 1,2W | X | 63217167000 | $3.00 | Shop at ECS Tuning |
